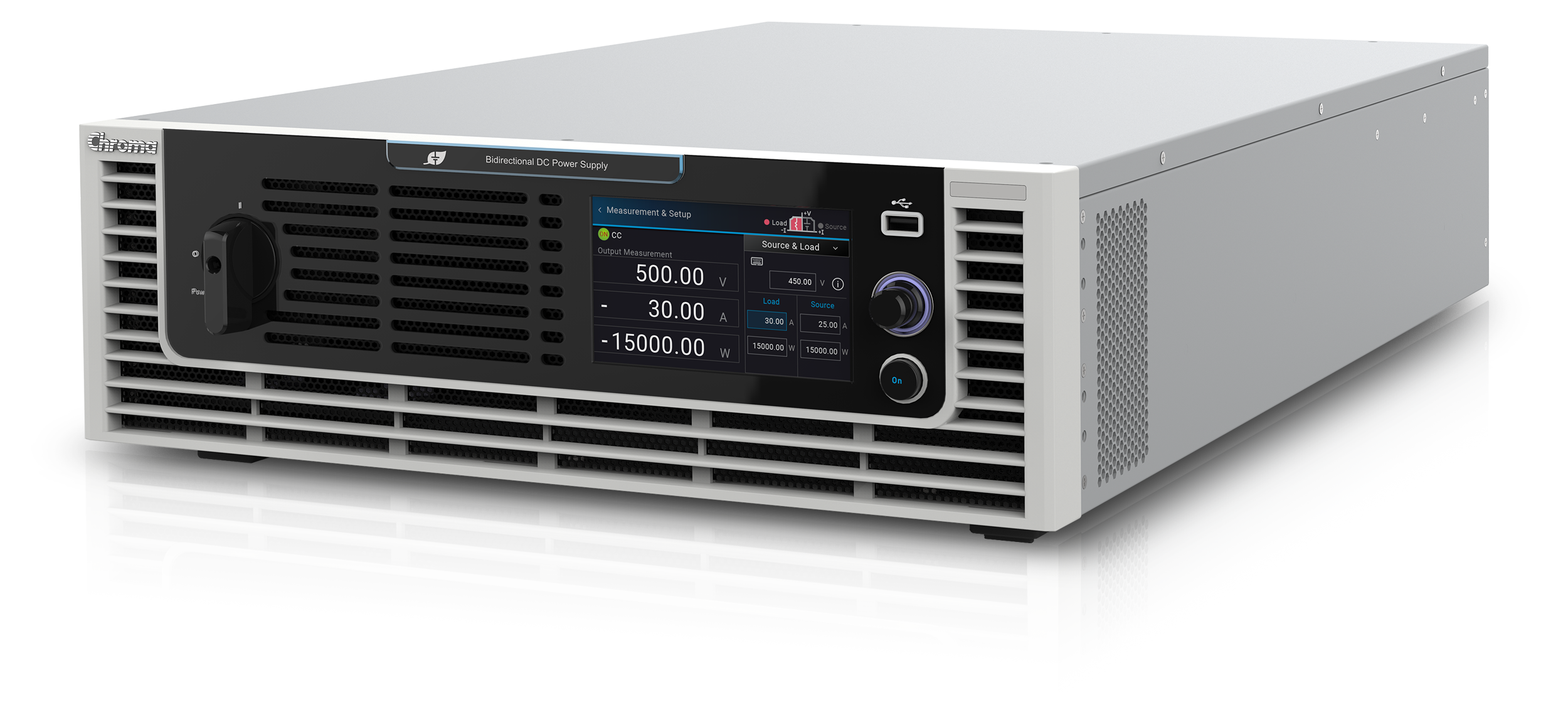

Bidirectional DC Power Supply + Regenerative Load

62000D Series

Bidirectional DC Power supplies with high accuracy and the widest operating range provide better control for testing bidirectional EV components, batteries, and PV inverters.

Connect with our team to learn more.

For a Limited Time, Solar Array Simulation is Included with all Models

Easily program various solar cell I-V characteristic outputs through manual or remote SCPI control. The SAS option includes features such as static and dynamic MPPT test shadowed I-V curve simulation, real-world weather simulation, and an auto-run function for static and dynamic MPPT tests, which generate reports. This functionality makes it the best choice for PV inverter design and verification testing.

Key Specifications and Features:

Voltage rating : 0~100V / 600V / 1200V / 1800V / 2000V
Current rating : 0~540A
Power rating : 6kW / 12kW / 18kW@3UH 36kW / 45kW@4UH
Dual output ranges in one-click switching (62000D-HL models)
Two-quadrant operation: source and load functions
High power density: 45kW in 4U
Easy master/slave parallel & series operation up to 540kW
Wide range of voltage & current combinations in constant power
Auto sequencing programming
Voltage & current slew rate control
High speed transient response <1.5ms
Low output noise and ripple
Standard USB/LAN/APG interfaces, optional CAN/CAN FD/GPIB interfaces (CAN FD is supported on 2000V models)
Optional solar array simulation function
