DC Power Supply – 62000H

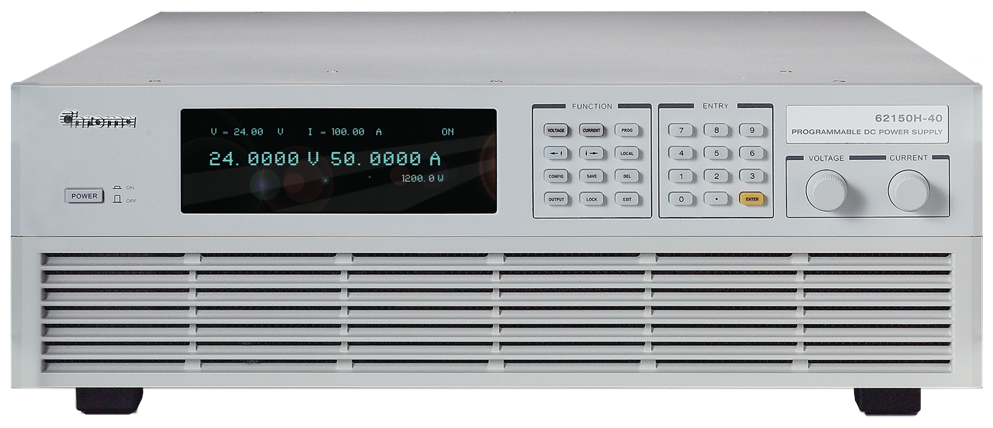

Chroma’s Programmable 62000H DC Power Supply provides 2kW to 150kW of power, precision readback of output current and voltage, output trigger signals, as well as the ability to create complex DC transients waveforms to test device behavior with voltage deviations.

product_slider_62000h_1



Key Features

  • Datasheet
  • Power range: 2kW / 5kW / 10kW / 15kW
  • Voltage range: 0 ~ 1000V
  • Current range: 0 ~ 375A
  • High power density (15KW in 3U)
  • Easy Master / Slave parallel & series operation up to 150kW
  • Precision V&I Measurements
  • High-speed programming
  • Voltage & Current Slew Rate Control
  • Digital encoder knobs, keypad and function keys
  • Current sharing operation
  • Voltage ramp function (time range: 10 ms ~ 99 hours)
  • Auto Sequencing Programming: 10 Programs / 100 Sequences
  • OVP, Current Limit, Thermal protection
  • Standard Analog Programming interface
  • Standard USB / RS232 / RS485 interface
  • Optional GPIB / Ethernet interface
  • Remote output ON/OFF (I/P)
  • Remote sense line drop compensation
  • LabView and Labwindows
  • CE Certified

Description

Chroma’s new 62000H Series of programmable DC Power Supplies offer many unique advantages for telecom, automated test system & integration, industrial, battery charge & simulation for hybrid cars and solar panel simulation. These advantages include a high power density of 15KW in 3U, precision readback of output current and voltage, output trigger signals, as well as the ability to create complex DC transients waveforms to test device behavior to spikes, drops, and other voltage deviations. For high power applications, parallel up to 10 units for up to 150kW.

High Power Density 15KW in 3U Programmable DC Power Supply

The 62000H Series DC Power Supplies offer a high power density envelop of 15KW in a 3U enclosure, deliver low output noise and ripple, have excellent line and load regulation, and have fast transient response. With a wide range of available voltage (30V~600V) and current (375A~25A) combinations, the 62000H/H-S are suitable for every part of your manufacturing process from design to production testing.

Master / Slave parallel & series operation up to 150KW

When high power is required, it is common to connect two or more power supplies in parallel or series. The 62000H Series DC Power Supplies have a smart Master / Slave control mode making series/parallel operation fast and simple. In this mode the master scales values and downloads data to slave units so programming is simple and current sharing automatic.

62000H DC Power Supply MASTER/SLAVE



Programming Sequences Applications

The 62000H Series DC Power Supplies’ LIST and STEP modes allows for auto sequencing function. The LIST mode allows for 100 user programmable sequences with time settings ranging from 5ms to 15000s and voltage / current slew rate control. The STEP mode allows for setting start, end voltage and run time of 10ms to 99 hours for automated test applications. Applications include DC/DC Converter & Inverter voltage dropout testing, engine start-up simulation, battery automated charging, battery voltage dropout simulation, product life cycle testing and avionics testing.

62000H DC Power Supply List Step Mode

62000H DC Power Supply Voltage testing

62000H DC Power Supply Hybrid Car

Model Description
62020H-150S Programmable DC Power Supply 150V/40A/2kW w/ Solar Array Simulator
62050H-600 Programmable DC Power Supply 600V/8.5A/5kW
62050H-600S Programmable DC Power Supply 600V/8.5A/5kW w/ Solar Array Simulator
62100H-600 Programmable DC Power Supply 600V/17A/10kW
62100H-600S Programmable DC Power Supply 600V/17A/10kW w/ Solar Array Simulator
62100H-1000 Programmable DC Power Supply 1000V/10A/10kW
62150H-600 Programmable DC Power Supply 600V/25A/15kW
62150H-600S Programmable DC Power Supply 600V/25A/15kW w/ Solar Array Simulator
62150H-1000 Programmable DC Power Supply 1000V/15A/15kW
62150H-1000S Programmable DC Power Supply 1000V/15A/15kW w/ Solar Array Simulator
Accessories
A620023 Ethernet Interface (LXI Compliant)
A620024 GPIB Interface
A620025 Ethernet Interface
A620026 Rack Mount Kit
W22 000118 3Phase/4Wire -220Vac Input cord (3AWG/L:3m/R-type terminal)
A620027 Slave Unit (600S/25A/15kW)
A620028 Slave unit (1000S/15A/15kW)
W38 000228 Master to Slave Analog Cable 25pin/40cm [A620027/A620028]
A620029 CSU
10658 SoftPanel KIT [62000H]
8747 SoftPanels [62000H-S] Solar Array Simulator

Need to achieve higher power? We’ve made it even easier. Using our Smart Master/Slave Control mode, we’ve already racked many high power configurations from 45kW to 150kW. Call us now to order your fast and simple solution.



Model Description Output Ratings
62000H-45-40 45kW DC Power Supply 45kW / 40V / 1125A 62000H 45kW
62000H-45-450 45kW DC Power Supply 45kW / 450V / 102A
62000H-45-600 45kW DC Power Supply 45kW / 600V / 75A
62000H-45-1000 45kW DC Power Supply 45kW / 1000V / 45A
62000H-60-40 60kW DC Power Supply 60kW / 40V / 1500A 62000H 60kW
62000H-60-450 60kW DC Power Supply 60kW / 450V / 136A
62000H-60-600 60kW DC Power Supply 60kW / 600V / 100A
62000H-60-1000 60kW DC Power Supply 60kW / 1000V / 60A
62000H-90-40 90kW DC Power Supply 90kW / 40V / 2250A 62000H 90kW
62000H-90-450 90kW DC Power Supply 90kW / 450V / 204A
62000H-90-600 90kW DC Power Supply 90kW / 600V / 150A
62000H-90-1000 90kW DC Power Supply 90kW / 1000V / 90A
62000H-120-40 120kW DC Power Supply 120kW / 40V / 3000A 62000H 120kW
62000H-120-450 120kW DC Power Supply 120kW / 450V / 272A
62000H-120-600 120kW DC Power Supply 120kW / 600V / 200A
62000H-120-1000 120kW DC Power Supply 120kW / 1000V / 120A
62000H-150-40 150kW DC Power Supply 150kW / 40V / 3750A 62000H 15kW
62000H-150-450 150kW DC Power Supply 150kW / 450V / 340A
62000H-150-600 150kW DC Power Supply 150kW / 600V / 250A
62000H-150-1000 150kW DC Power Supply 150kW / 1000V / 150A


User Manuals

Manuals - 62000H Series

One time registration required in order to download documents. Register or login to continue. 8.42 MB 113 downloads

User Manuals for 62000H High Power Programmable DC Power Supplies. Available documents are: Quick Start Guide Hardware User Manual Softpanel User Manual All files in PDF format. ...

Manuals - 62000H-S Series

One time registration required in order to download documents. Register or login to continue. 10.03 MB 98 downloads

User Manuals for 62000H-S High Power Solar Array Simulating Programmable DC Power Supplies. Available documents are: Quick Start Guide Hardware User Manual Softpanel User Manual All files in PDF format. ...

Specifications
Datasheet
Brochures

Battery Test Solutions

Download 4392.00 KB 2586 downloads

Brochure outlining Chroma battery testing solutions. Chroma satisfies battery test requirements such as charge rate, discharge rate, state of charge (SOC), and state of health (SOH), and depth of discharge...

Electric Vehicle Testing Solutions

Download 2758.00 KB 2320 downloads

Brochure covering Chroma Electric Vehicle testing hardware. ...

PV Inverter Testing

Download 2535 2690 downloads

Brochure highlighting the Chroma solutions for testing PV Inverters. ...

Application Notes

62000H IV Curve Simulation

One time registration required in order to download documents. Register or login to continue. 483 KB 287 downloads

This application note describes how to select the appropriate I-V curve control mode to test the MPPT Efficiency of a PV inverter. ...
