Exploring Regenerative Battery Pack Test System

Regenerative Battery Pack Test System

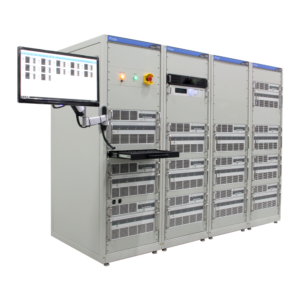

Chroma 17020

Designed for secondary battery modules and pack tests, with accurate sources and measurements suitable for performing repetitive and reliable tests.

Voltage

20V/ 60V/ 100V/ 200V/ 500V

Current

65A/ 13A/ 62.5A/ 50A/ 30A

Power

1.25kW/ 600W/ 2.5kW

The Chroma 17020 System is a high precision integrated solution specifically designed for secondary battery module and pack tests. Accurate source and measurement ensure the test quality that is suitable for performing exact, reliable testing crucial for battery module / pack incoming or outgoing inspection as well as capacity, performance, production and qualification testing.

Regenerative Discharge

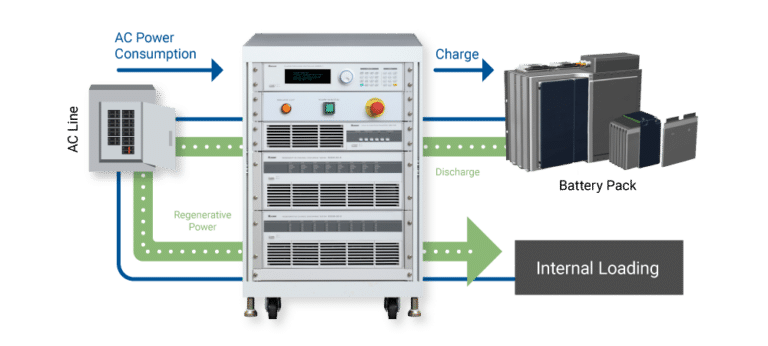

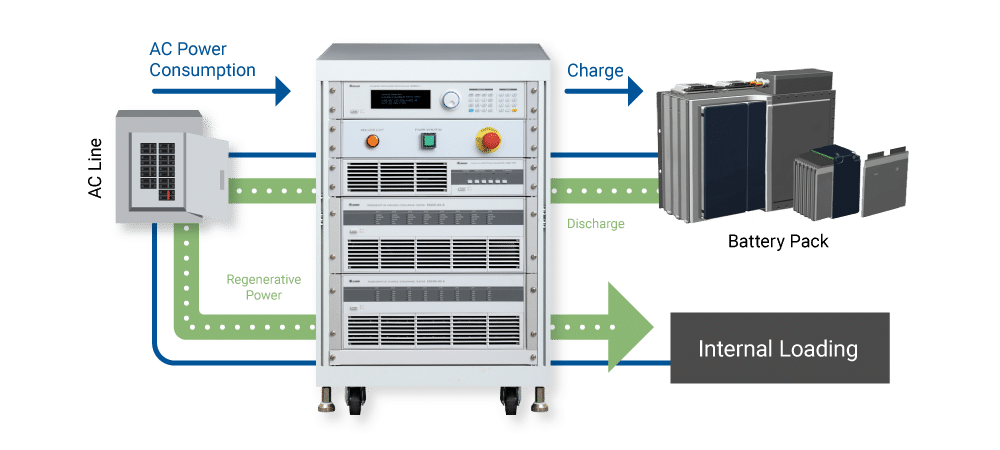

Chroma’s 17020 system architecture offers regenerative discharge designed to recycle the electric energy sourced by the battery module either back to the channels in the system performing a charging function or to the utility mains in the most energy efficient manner. This feature saves electricity, reduces the facilities thermal footprint and provides a green solution through reducing the environmental impact on our planet.

Multi-channel Support

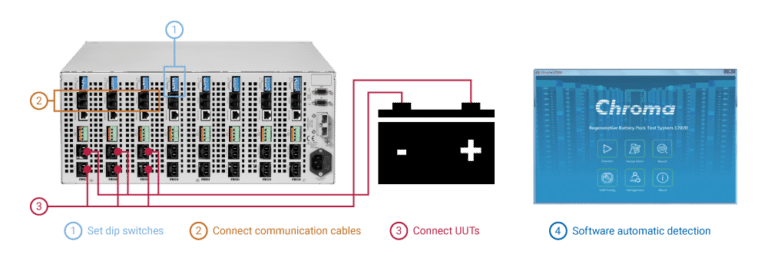

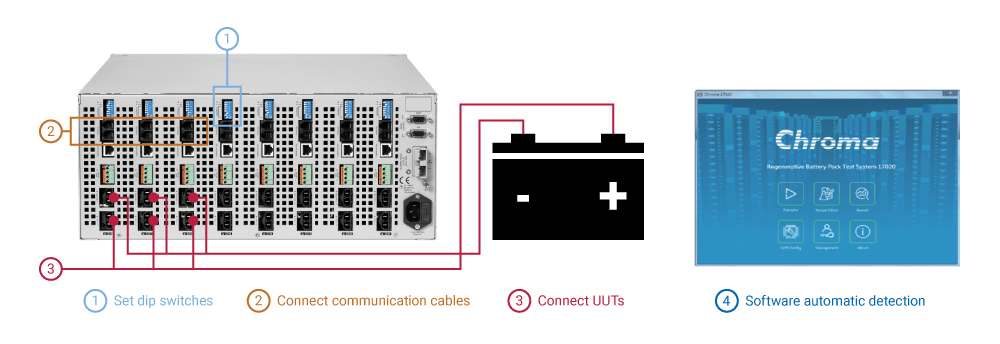

Chroma’s 17020 system is equipped with multiple independent channels to support dedicated charge/discharge tests, on multiple battery modules/packs, each with discrete test characteristics. The channels can easily be paralleled to support higher current requirements. This feature provides the ultimate flexibility between high channel count and high current testing.

Advanced hardware design can create seamless transitions between maximum charge and maximum discharge (or maximum discharge and maximum charge) with a rapid 50 ms conversion. This feature allows for charge/discharge modes simulating real world scenarios.

The Chroma 17020 system has multiple safety features including Battery Polarity Check, Over Voltage Protection, Over Current Protection Check and Over Temperature Protection to ensure protected charge/discharge testing. In the unlikely event of power or computer communication loss, data is securely stored in system non-volatile memory protecting against potential data loss and allowing for continuous flow after restart.

Model Description
17020 Regenerative Battery Pack Test System
17020 Regenerative Battery Pack Test System 600W/60V/13A, 8~56CH
17020 Regenerative Battery Pack Test System 2.5kW/60V/62.5A, 4~20CH
17020 Regenerative Battery Pack Test System 2.5kW/100V/50A, 4~20CH
17020 Regenerative Battery Pack Test System 2.5kW/200V/30A, 4~20CH
17020 Regenerative Battery Pack Test System 2.5kW/500V/13A, 4~20CH
17020 Regenerative Battery Pack Test System 5kW/20V/260A, 2~10CH
17020 Regenerative Battery Pack Test System 5kW/60V/250A, 2~10CH
17020 Regenerative Battery Pack Test System 5kW/60V/125A, 2~10CH
17020 Regenerative Battery Pack Test System 5kW/100V/100A, 2~10CH
17020 Regenerative Battery Pack Test System 5kW/200V/60A, 2~10CH
17020 Regenerative Battery Pack Test System 5kW/500V/26A, 2~10CH
17020 Regenerative Battery Pack Test System 10kW/20V/520A, 1~5CH
17020 Regenerative Battery Pack Test System 10kW/60V/500A, 1~5CH
17020 Regenerative Battery Pack Test System 10kW/60V/250A, 1~5CH
17020 Regenerative Battery Pack Test System 10kW/100V/200A, 1~5CH
17020 Regenerative Battery Pack Test System 10kW/200V/120A, 1~5CH
17020 Regenerative Battery Pack Test System 10kW/500V/52A, 1~5CH
17020 Regenerative Battery Pack Test System 20kW/20V/1040A, 1~3CH
17020 Regenerative Battery Pack Test System 20kW/60V/1000A, 1~3CH
17020 Regenerative Battery Pack Test System 20kW/60V/500A, 1~3CH
17020 Regenerative Battery Pack Test System 20kW/100V/400A, 1~3CH
17020 Regenerative Battery Pack Test System 20kW/200V/240A, 1~3CH
17020 Regenerative Battery Pack Test System 20kW/500V/104A, 1~3CH
17020 Regenerative Battery Pack Test System 50kW/20V/2600A, 1CH
17020 Regenerative Battery Pack Test System 50kW/60V/2500A, 1CH
17020 Regenerative Battery Pack Test System 50kW/60V/1250A, 1CH
17020 Regenerative Battery Pack Test System 50kW/100V/1000A, 1CH
17020 Regenerative Battery Pack Test System 50kW/200V/600A, 1CH
17020 Regenerative Battery Pack Test System 50kW/500V/260A, 1CH
17020 Regenerative Battery Pack Test System 60kW/60V/1500A, 1CH
17020 Regenerative Battery Pack Test System 60kW/100V/1200A, 1CH
17020 Regenerative Battery Pack Test System 60kW/200V/720A, 1CH
17020 Regenerative Battery Pack Test System 60kW/500V/312A, 1CH
51101-64 Thermal/Multi-Functiion Data Logger, 64CH
A692003 Thermal sensor with cable
A692000 BMS data communication unit 4 channels
A692001 BMS data communication unit 8 channels
A170201 IPC for battery test system
