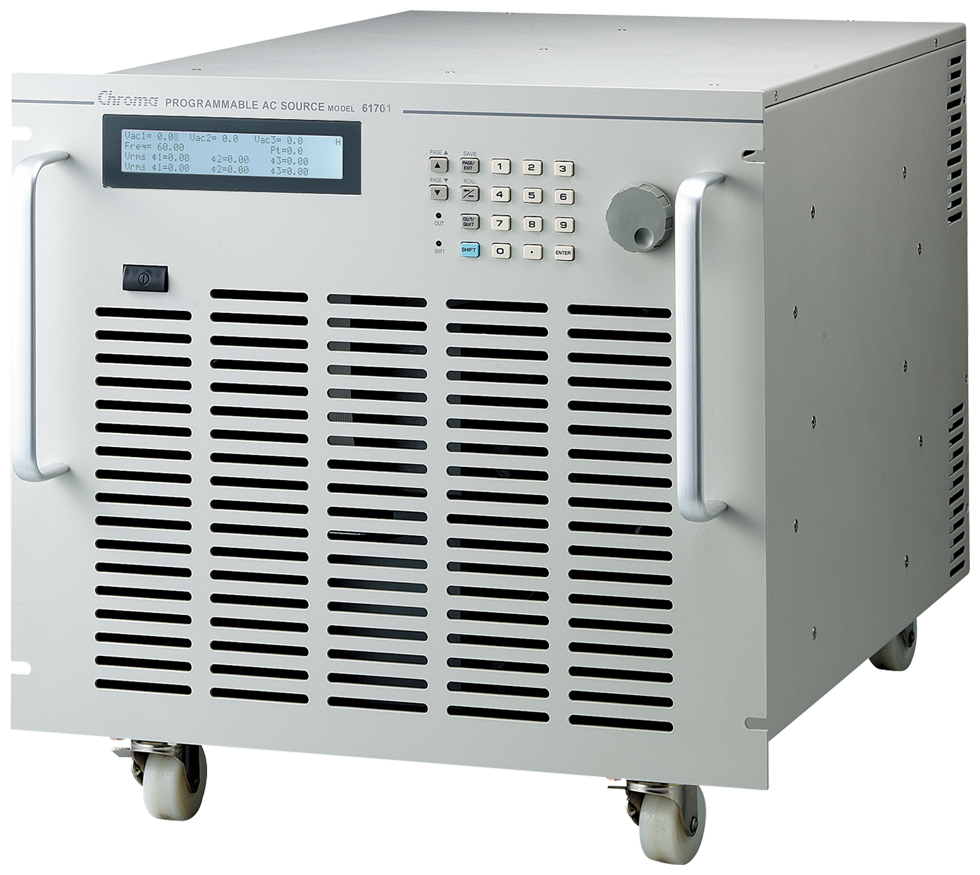

3-Phase Programmable AC Source – 61700

Request a Quote! Get Datasheet

product_slider_61700_1



Key Features

  • Datasheet
  • Power: 1500VA, 3Ø (61701); 3000VA, 3Ø (61702); 4500VA, 3Ø (61703); 6000VA, 3Ø (61704); 12000VA, 3Ø (61705)
  • Voltage: 0~150V/0~300V
  • Frequency: 15~1.2KHz
  • Phase angle: 0~360°
  • Built-in PFC, provides input power factor over 0.98
  • Advanced PWM technology delivers high power density in a compact rack-mountable package
  • Built-in output isolation relays
  • AC+DC output mode
  • Programmable slew rate setting for changing voltage (optional function)
  • Turn on, turn off phase angle control
  • User-definable power-on status
  • Power line disturbance (PLD) simulation capability (optional function)
  • Comprehensive measurement capability: V, Irms, Ipk, I inrush, P, PF, CF of current etc.
  • Programmable r.m.s. current limit
  • Full protection: OP, OC, OV and OT protection
  • GPIB and RS-232C interface (optional)
  • Easy-use software for operation

Description

The Chroma Programmable AC source model 61700 series delivers pure, 5-wire, 3-phase AC power. Unlike the traditional 3-phase AC source, it includes low power rating models at very low cost. Users can program voltage and frequency, measure the critical characteristics of the output on its LCD display. It delivers the right solution to simulate all kinds of input condition of UUT to be utilized in R&D and QA. It is also suitable for commercial applications from laboratory testing to mass productions.

Comprehensive Measurements

By building in a 16-bit precision measurement circuit, the 61700 series AC source offers precision and high speed measurements. Such as RMS voltage, RMS current, true power, power factor, and current crest factor, VA (apparent power) and VAR (reactive power). Users can use rotary knob to change the measurement items shown on LCD display. They also can change page to see more measurement items.



Slew Rate of Voltage

Chroma 61700 PanelProgrammable AC Source 61700 Series use DSP technology to program voltage waveform. Users can change the voltage in only one step. Or users can set the slew rate to get a gradual increase or decrease of voltage. It can help to easily test the line input range of the products, for example 190V-264V. It can also reduce the inrush current if setting the line in voltage to increase from a low level to a high level.



61700 Series AC Source Applications



Power Line Disturbance Simulation (Optional Function)

In addition to the steady output voltage and frequency programming, Chroma AC power source 61700 series provides the powerful functions PULSE, LIST and STEP to simulate all kinds of power line disturbance conditions.

61700 Pulse, List, Step



Harmonics, Interharmonics Sythesis (Optional Function)

Users can make use of the softpanel software (A617001) to synthesize harmonic waveforms and store them in the memory of the AC source. An interharmonic sweeping function from 0.01Hz to 2400Hz is also available to generate a distorted non-periodic waveform directly from 61700 series front panel.

61700 Harmonics / Interharmonics Waveforms

See more about our software

61700 Soft Panels

Model Description
61701 Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 1.5KVA
61702 Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 3KVA
61703 Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 4.5KVA
61704 Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 6KVA
61705 Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 12KVA
Accessories
A615001 GPIB/RS232 Interface [61500/61600/61700]
A615008 DC Noise Filter (max.16A) [61500/61600/61700]
7887 USB-to-RS232 Adapter Kit [63200/61×00/6×00]
8194 Transient Generator [61700]
8193 Mod Option, HV-320VAC [61500/61600/61700]
10704 SoftPanel KIT [61700]
7609 SoftPanels, Mil-Std-Aerospace [61500/61700/6151x]

User Manuals

Manuals - 61700 series

One time registration required in order to download documents. Register or login to continue. 4.66 MB 682 downloads

User Manuals for 3-Phase Programmable AC Source, models 61701 through 61705. Available documents are: Quick Start Guide Hardware User Manual Softpanel User Manual All files in PDF format. ...

Specifications
Datasheet
Application Notes

AC Sources Software Simplifies Testing To Mil And Aerospace Standards

One time registration required in order to download documents. Register or login to continue. 1.5 MB 688 downloads

This application note will show some of the capabilities of Chroma’s AC Sources in combination with the Military Aerospace Soft Panel and other Soft Panels. ...
