Programmable DC Power Supply – 62000P

Chroma’s 62000P Programmable DC Power Supply offers many advantages including a constant power operating envelope, precision readback of output current and voltage, output trigger signals as well as the ability to create complex DC transients waveforms to test device behavior to spikes, drops, and other voltage deviations. Designed for automated testing of DC-DC converters and similar products, the 62000P sets a new standard for high accuracy programmable DC supplies.62000P DC Power Supply

    Features

    • Datasheet
    • Wider range of voltage & current within the power rating of the power supply
    • Wide Voltage and Current range that allows the unit to operate at full power at different voltage set points
    • Voltage range: 0 ~ 600V
    • Power range: 600W, 1200W, 2400W, 5000W
    • High-speed Programming
    • Precision V&I Measurements
    • Current sharing for parallel operation with Master/Slave Control
    • LXI option now available! See LXI compliance.

    Description

    The 62000P Series includes 12 different models ranging from 600W to 5000W, up to 120A and up to 600V. Due to their constant power operating envelope a single instrument can provide both high voltage/low current AND low voltage/high current thereby reducing the number of supplies needed in typical ATE applications. The 62000P Series also includes 16 bit readback capability for accurate voltage and current readings. This means systems no longer need complex shunt/multiplexers to make accurate readings of the UUT’s input parameters. The instruments also include I/O ports providing 8 bit TTLs, DC-ON, fault output signal and remote inhibit as well as a output trigger signal for system timing measurements.

    Another unique capability of the 62000P Series supplies is their ability to create complex DC transient waveforms. This capability allows devices to be tested to DC voltage dropouts, spikes and other voltage variations making them an ideal choice for airborne device testing, inverter testing and other devices which will experience voltage interrupts. Applications include DC/DC Converter & Inverter voltage drop test, engine start-up simulation, battery automated charging, electronic product life cycle test, and etc.

    Differentiators

    • Constant Power Envelope means one of our power supplies usually can replace 2 or 3 of other brands
    • Ability to generate transient waveforms for testing to industry standards for airborne, shipboard, automobile, etc
    • High accuracy readback means efficiency readings can be made directly from DC source instead of using external shunts and DMMs
    • Output trigger signals allow scopes and other devices to be triggered for timing measurements
    • Available softpanels

    Wide Operating Region With Constant Power

    Chroma DC Power Supply Wide Operating Region ChartThe 62000P Programmable DC Power Supplies offer a wide operating region. For example, the output specification for the 62012P-80-60 is 1200W/80V/60A, it allows operating flexibly in various combinations as shown in the figure to the right. Conventional power supplies provide the same rated current at all output voltages, however, the 62000P DC Power Supply provides greater current at lower output voltages. This means both low voltage/high current and high voltage/low current UUTs can be tested using a single supply avoiding the need for multiple supplies.



    Master/Slave Parallel & Serial Control

    When high power is required, it is common to connect two or more power supplies in parallel or series. The 62000P Series DC Power Supplies have a smart Master/Slave control mode making series/parallel operation fast and simple. In this mode the master scales values and downloads data to slave units so programming is simple and current sharing is automatic.

    DC Power Supply MASTER/SLAVE PARALLEL & SERIAL CONTROL



    Programming Sequences Applications

    The 62000P series DC Power Supply allows for 100 user programmable sequences with time settings ranging from 5ms to 15000s, voltage/current slew rate control and 8 bit TTL output for automated test applications. Applications include DC/DC Converter & Inverter voltage dropout testing, engine start-up simulation, battery automated charging, product life cycle testing and airborne avionics testing.

    DC Power Supply Soft Start Testing DC Power Supply Voltage Step Waveform DC Power Supply D2D Converter SAG Testing
    Soft Start Testing Voltage Step Waveform D2D Converter SAG Testing
    DC Power Supply D2D Converter Surge Testing DC Power Supply D2D Converter Cycle Drop Test DC Power Supply Pulse Charge of Battery
    D2D Converter Surge Testing D2D Converter Cycle Drop Test Pulse Charge of Battery
    DC Power Supply Life Cycle Testing DC Power Supply Line Regulation Testing
    Life Cycle Testing Line Regulation Testing
    DC Power Supply Starting Profile of ISO 16750-2 DC Power Supply Reset Behavior at Voltage Drop of ISO 16750-2
    Starting Profile of ISO 16750-2 Reset Behavior at Voltage Drop of ISO 16750-2

    The 62000P DC Power Supplies provide 8 output TTL bits with timing control. These control lines can be used for VID control of VRM or to control other discrete signals.

    DC Power Supply VID Code Simulation

    Model Description
    62006P-30-80 Programmable DC Power Supply 30V/80A/600W
    62006P-100-25 Programmable DC Power Supply 100V/25A/600W
    62006P-300-8 Programmable DC Power Supply 300V/8A/600W
    62012P-40-120 Programmable DC Power Supply 40V/120A/1200W
    62012P-80-60 Programmable DC Power Supply 80V/60A/1200W
    62012P-100-50 Programmable DC Power Supply 100V/50A/1200W
    62012P-600-8 Programmable DC Power Supply 600V/8A/1200W
    62024P-40-120 Programmable DC Power Supply 40V/120A/2400W
    62024P-80-60 Programmable DC Power Supply 80V/60A/2400W
    62024P-100-50 Programmable DC Power Supply 100V/50A/2400W
    62024P-600-8 Programmable DC Power Supply 600V/8A/2400W
    62050P-100-100 Programmable DC Power Supply 100V/100A/5000W
    Accessories
    A620004 GPIB Interface
    A620023 Ethernet Interface (LXI Compliant)
    A620006 Rack Mount Kit [62006P-62024P]
    A620015 Rack Mount Kit [62050P]
    10658 SoftPanel KIT

    See more about our software



    Soft Panels

    DC Power Supply 62000P Software DC Power Supply 62000P Software
    ISO 16750-2 4.5.3 Starting Profile ISO 16750-2 4.5.1 Momentary Drop In Supply Voltage

    User Manuals

    Manuals - 62000P Series

    One time registration required in order to download documents. Register or login to continue. 8.10 MB 448 downloads

    User Manuals for 62000P Programmable DC Power Supplies. Available documents are: Quick Start Guide Hardware User Manual Softpanel User Manual All files in PDF format. ...

    Specifications
    Datasheet
    Product Brochures

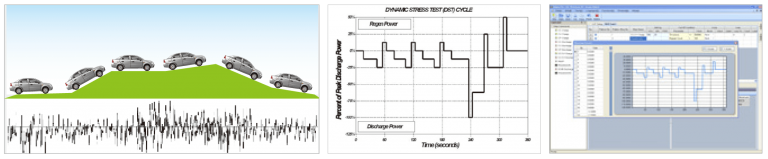

    Battery Test Solutions

    Download 4392.00 KB 2634 downloads

    Brochure outlining Chroma battery testing solutions. Chroma satisfies battery test requirements such as charge rate, discharge rate, state of charge (SOC), and state of health (SOH), and depth of discharge...

    Application Notes

    Constant Power Envelope On 62000P Series DC Sources

    One time registration required in order to download documents. Register or login to continue. 551 KB 446 downloads

    This application note will discuss the benefits of a DC programmable source with constant power envelope versus a conventional DC programmable source. ...

    DC Source Wireless LAN To RS 232 Adapter

    One time registration required in order to download documents. Register or login to continue. 1503.00 KB 250 downloads

    This application discusses how to use the “Wireless LAN to RS 232 Adapter” to control the DC Source. ...
