Low Power Programmable AC Source – 61600

Request a Quote! Get Datasheet

product_slider_61600_1



Key Features

  • Datasheet
  • Power:
    • 500VA (61601)
    • 1000VA (61602)
    • 1500VA (61603)
    • 2000VA (61604)
    • 4000VA (61605)
  • Voltage range: 0-150V/0-300V/Auto
  • High voltage capability: up to 600V via A615003
  • Frequency: 15Hz – 1000Hz
  • Compact size and weight attributable to advance PWM technology
  • Built-in PFC, provide input power factor over 0.98 (full load)
  • AC+DC output mode for voltage DC offset simulation
  • Programmable slew rate setting for changing voltage and frequency
  • Programmable voltage, current limit
  • One-key recall for 9 different voltage and frequency
  • Low output impedance for testing IEC 61000-3-2 ( 61605 )
  • Comprehensive measurement capability, V, Irms, Ipk, Inrush, P, Q, S, PF, CF of current and etc.
  • High output current crest factor, ideal for inrush current testing
  • Turn on, turn off phase angle control
  • TTL signal which indicates ON/OFF
  • Analog programming interface
  • 3 units combined to 3-phase power output
  • Easy-use software for operation and ON/OFF test
  • Standard GPIB and RS-232C interfaces
  • Optional USB and Ethernet interfaces
  • Full protection: OP,OC,OV and OT protection

Description

Chroma Programmable AC Power Source 61600 series delivers pure, instrument grade AC power at very low cost. The 61600 series supplies output voltage from 0 to 300VAC, and frequencies from 15 to 1000Hz. It is suitable for commercial, avionics, and military applications from bench-top testing to mass production.

Slew Rate of Voltage & Frequency

The Chroma Programmable AC Power Source 61600 Series use DSP technology for programming voltage waveforms. Users can change the voltage or frequency in only one step, or they can set the slew rate to get a gradual increase or decrease of voltage and frequency. This can help users to easily test the power input range (for example, 90V-264V/47Hz-63Hz) of their products.

61600 Waveform 61600-waveform



One-Key Recall Mode

The Chroma Programmable AC Power Source 61600 Series allows users to save 9 voltage and frequency combinations. Users can recall these values by pressing the “1” to “9” keys on the control panel. This can help testers or manufacture operators easily change the voltage or frequency for a variety of fixed test conditions.

61600 One Key Recall



Comprehensive Measurements

The Chroma Programmable AC Power Source 61600 Series has a built in 16-bit precision measurement circuit and firmware utilities to measure RMS voltage, RMS current, true power, power factor, peak repetitive current, inrush current, current crest factor, VA (apparent power), and VAR
(reactive power). These comprehensive measurements make the Chroma Programmable AC Power Source 61600 Series not only a power source
but also a highly capable power meter.

61600 Comprehensive Measurements



High Output Current Crest Factor & Turn On/Off Phase Angle Control

The Chroma Programmable AC Power Source 61600 Series is capable of providing high output current crest factors (Max. 6). It delivers sufficient transient power that is required for testing most rectified input type power circuits. The programmable on/off phase angle control makes the 61600 series AC source ideal for inrush current test.

61600 Crest Factor

Model Description
61601 Programmable AC Source 0~300V, 15~1kHz / 500VA, 1ø
61602 Programmable AC Source 0~300V, 15~1kHz / 1KVA, 1ø
61603 Programmable AC Source 0~300V, 15~1kHz / 1.5KVA, 1ø
61604 Programmable AC Source 0~300V, 15~1kHz / 2KVA, 1ø
61605 Programmable AC Source 0~300V, 15~1kHz / 4KVA, 1ø
Accessories
7887 USB-to-RS232 Adapter Kit [63200/61×00/6×00]
A615002 LAN and USB Remote Interface [61500/61600/61700]
A615003 Boost Transformer (600Vac/max.1.8KVA) [61500/61600]
A610004 Universal Socket Center (1 phase<13A)
A615008 DC Noise Filter (max.16A) [61500/61600/61700]
8193 Mod Option, HV-320VAC [61500/61600/61700]
10656 SoftPanel KIT [61500/61600/6151x/6161x](includes mod option)
8189 Sync Cable Assy [61500/61600]

See more about our software

The 61500/61600 Series Softpanel

Chroma Softpanel is a graphical user interface which provides extraordinary capability and convenience to user for delivering control to the unit. The 61500/61600 series Softpanel is designed specifically for offering users control of the AC source by applying a user friendly interface configured in graphical, instrument like settings. The self explanatory graphical interface makes enabling of the extensive functions of the AC source easy with just few clicks of a button. Users are able to perform online and offline waveform editing with the implementation of the softpanel. The softpanel is also equipped with data recording functions as multiple measurement data can be recorded simultaneously. One of the most powerful features of our softpanel is the availability of a test environment configured specifically for conducting IEC regulation tests, including IEC61000-4-11, IEC61000-4-13, IEC61000-4-14 and IEC61000-4-28.

61512 Soft Panels

User Manuals

Manuals - 61600 Series

One time registration required in order to download documents. Register or login to continue. 9.14 MB 2254 downloads

User Manuals for Low Power Programmable AC Source, models 61601, 61602, 61603, 61604, and 61605. Available documents are: Quick Start Guide, 61601-61604 Hardware User Manual, 61601-61604 Hardware User...

Specifications

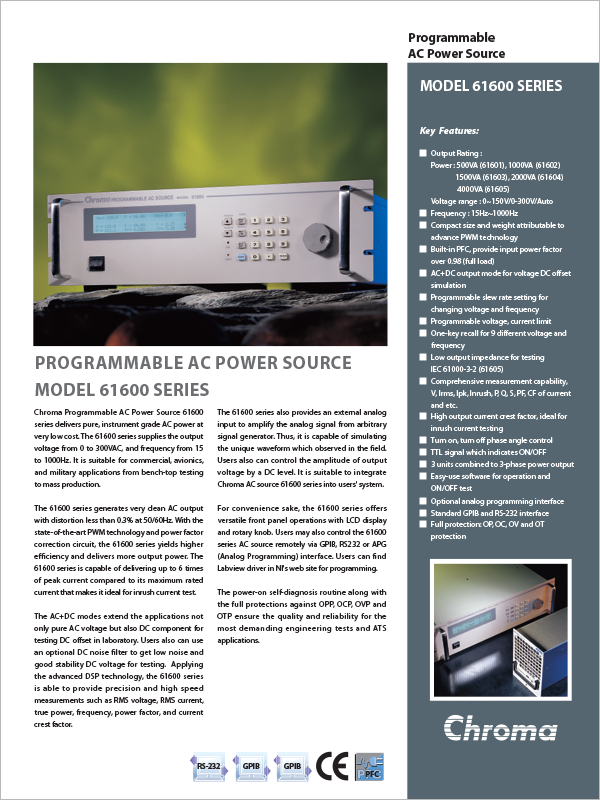

Datasheet
Brochures

PV Inverter Testing

Download 2535 4685 downloads

Brochure highlighting the Chroma solutions for testing PV Inverters. ...

Application Notes

AC Sources Software Simplifies Testing To Mil And Aerospace Standards

One time registration required in order to download documents. Register or login to continue. 1.5 MB 712 downloads

This application note will show some of the capabilities of Chroma’s AC Sources in combination with the Military Aerospace Soft Panel and other Soft Panels. ...

AC Sources Single & 3 Phase Power

One time registration required in order to download documents. Register or login to continue. 358 KB 820 downloads

This application note discusses single and 3 phase power primarily for the USA. Common NEMA connectors used for both single and 3 phase applications are also covered. ...
