Guardian Ground Bond Tester – 19572
Key Features

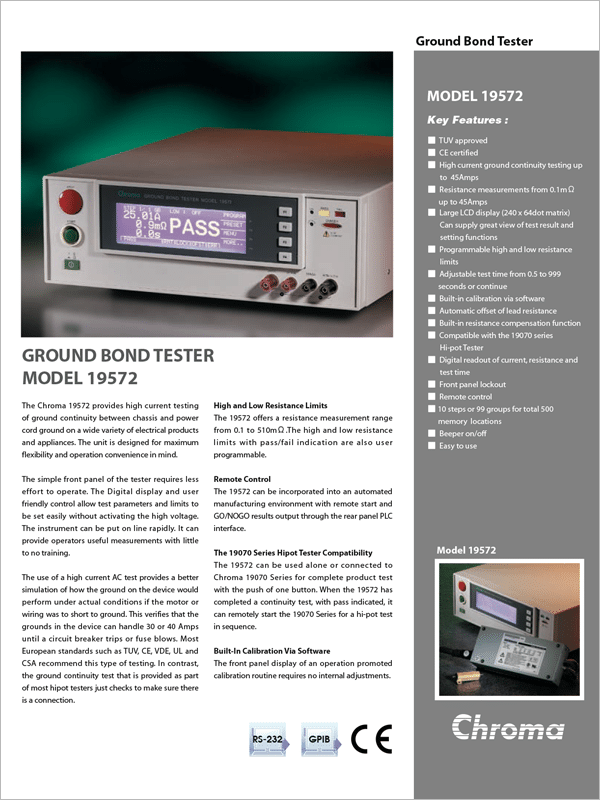

- Datasheet
- Wide resistance measurement range : 0.1 ~ 510 mΩ
- High performance AC current output : 45 A
- Compact size ground bond tester
- Provide reliable and stable test results
- Built-in resistance compensation function
- Standard RS-232 interface
- Optional GPIB Interface

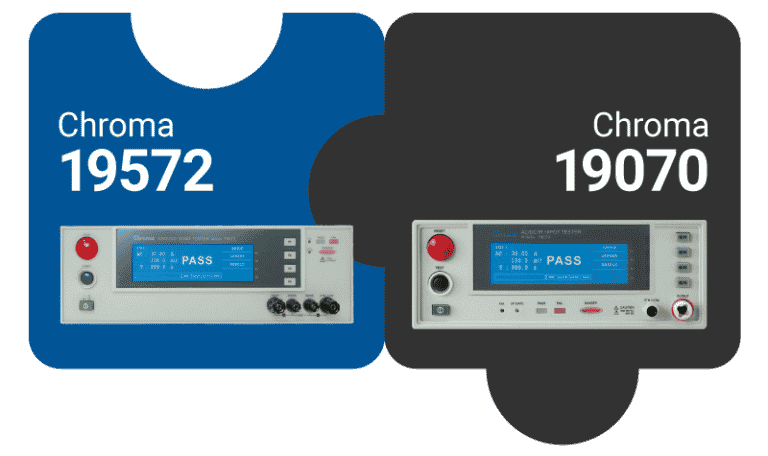

- Compatible with the model 19070 series Hipot Tester
- 2-Year factory warranty

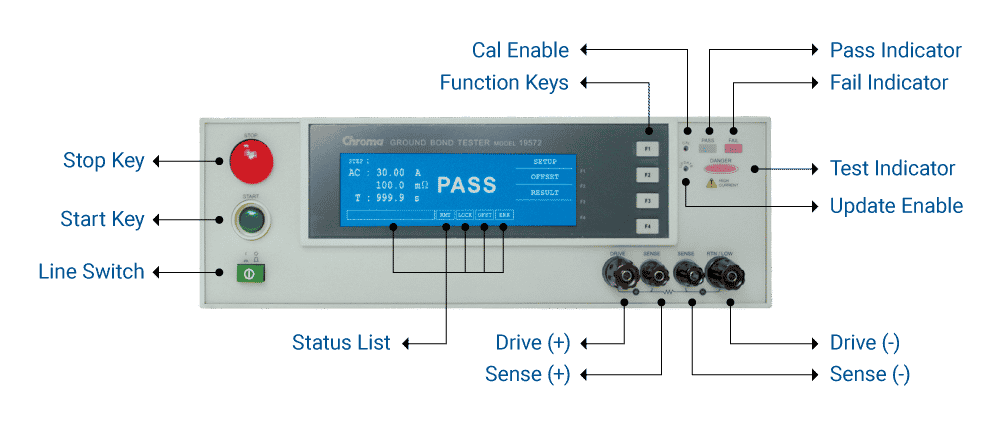

Description
The Guardian 19572 is an instrument dedicated to measuring grounding resistance within the range of 0.1~510mΩ. Its compact form factor and easy to operate feature set is well suited for testing in a production line. By supplying high reliability and stability test results with built-in resistance compensate function; it is an economical and useful grounding tester.
| Model | Description |
| Guardian 19572 | Ground Bond Tester |
| Accessories | |
| S15 | Interconnect Cable Set [19070/19050 to 19572] |
| A190517 | 19″ Rack Mount Kit |
| A190701 | Remote Control Box |
| A195720 | GPIB Interface |
Specifications
User Manuals
Manuals - 19572 Ground Bond Tester
One time registration required in order to download documents. Register or login to continue. 2.14 MB 191 downloadsUser Manuals for 19572 Ground Bond Tester. Available documents are: Quick Start Guide Hardware User Manual All files in PDF format. ...
Application Notes
What's Changing In Appliance Hipot Testing And Why
One time registration required in order to download documents. Register or login to continue. 515.00 KB 240 downloadsThis application note provides information on changes in appliance hipot testing procedures. ...
Hipot Testing Of Motors And Safety Standard Compliance
One time registration required in order to download documents. Register or login to continue. 261 KB 258 downloadsThis application note describes the regulatory standards and tests that are applicable to hipot testing of motors. ...
Ground Bond, Ground Continuity And Earth Continuity
One time registration required in order to download documents. Register or login to continue. 456 KB 370 downloadsThis application note covers the differences between Ground Bond, Ground Continuity And Earth Continuity tests, and how these tests can result in safer products. ...
19572 Ground Bond Testing Per UL 60950
One time registration required in order to download documents. Register or login to continue. 685 306 downloadsThe intention of this particular application note is to investigate, define and clarify the protective earthing and bonding requirements in paragraph 2.6.3.3 of UL 60950. ...
