Guardian Hipot Analyzer – 19056/19057

Request a Quote! Get Datasheet

product_slider_safety_19057

Key Features

  • Datasheet
  • 10kV AC & 20kV DC withstand voltage test
  • 0.1MΩ~50GΩ insulation resistance test
  • BDV (BreakDown Voltage test)
  • HVCC (High Voltage Contact Check)
  • HFCC (High Frequency Contact Check)
  • OSC (Open Short Check)
  • GFI (Ground Fault Interrupt)human protection circuit
  • Fast charge/discharge function
  • Programmable output & test limit
  • Standard USB and RS232 interface
  • Optional GPIB & HANDLER interface
  • Key lock function
  • CE Mark
  • 2-Year factory warranty

Description

Chroma’s Guardian 19056/19057 Hipot Analyzer is specially designed for testing and analyzing ultra-high withstand voltage. The series of models include 10kVac/12kVdc/20kVdc with maximum AC20mA/DC10mA output that can perform AC/DC withstand voltage and insulation resistance tests with contact check during production line test. In addition to the patented OSC (Open Short Check), High Voltage Contact Check is added to test the components with high insulation capability when high voltage outputs to improve the testing reliability and efficiency.

The Guardian 19056/19057 with GFI (Ground Fault Interrupt) is designed to protect operator’s safety when abnormal ground current (A2-A1) occurs.

The Hipot Analyzer provides high withstand voltage testing and analysis for optical couplers, HV relays, HV switches and PV modules, which have better insulation capability.

Charge and discharge are required for capacitive components when doing DC withstand voltage test. The Hipot Analyzers have fast charge functionality that can increase production test efficiency.

The entire series has Flashover (ARC) detection functionality. They can perform discharge level analysis through the start voltage, end voltage, number of steps and time. Phase judgment is provided in DLA (Discharge Level Analysis) mode to set inspection for Flashover (ARC) and Breakdown test (high limit). When a defect appears in the test, the 19056/19057 will show the withstanding voltage to indicate the Flashover Start Voltage (FSV) or Breakdown Voltage (BDV) respectively. In addition, External Oscilloscopes can be mounted to check the waveform at the same time during analysis. The R&D engineers can perform product analysis and study utilizing the test results to improve the weakness of insulation components.

Model Description
Guardian 19056 Hipot Analyzer AC10KV
Guardian 19057 Hipot Analyzer DC12KV (IR/BDV)
Guardian 19057-20 Hipot Analyzer DC20KV (IR/BDV)
Accessories
A190355 19″ Rack Mount Kit
A190356 GPIB Interface for Model
A190702 40kV High Voltage Testing Rod
A190708 ARC (Flashover) Verification Fixture
10541 Softpanel Kit

Specifications

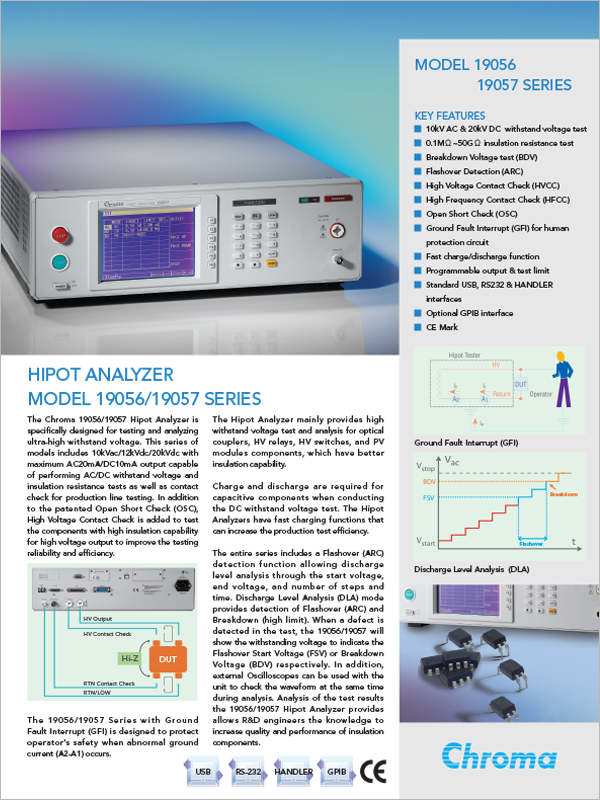

Datasheet
User Manuals

Manuals - 19056/19057 Hipot Analyzer

One time registration required in order to download documents. Register or login to continue. 1.77 MB 3578 downloads

User Manuals for 19056/19057 Guardian Hipot Analyzer. Available documents are: Hardware User Manual All files in PDF format. ...

Application Notes

Open Short Check Function of Chroma Safety Analyzers

One time registration required in order to download documents. Register or login to continue. 895.84 KB 515 downloads

...

    How To Buy

    Three efficient ways to get pricing and/or more information regarding this instrument:

    Electronically: Please complete this form and one of our sales engineers will respond same day or next business day if after hours. Requests from this form are quoted directly from Chroma.

    By phone: Call us at 949-600-6400, let the operator know where you are located, and you’ll be routed to your regional sales engineer.

    By chat: Feel free to use the Chat line located at the bottom right of this page. The chat operator will take your information and route it to your regional sales engineer.



    Want a quote for multiple instrument types? If you would like a quote for multiple instrument types, please use this form.



    Lead time

    Most of our instruments are inventoried and ready to ship. If we are currently out of stock – and due to demand we can be - lead times are typically 4-8 weeks depending on the instrument’s power rating.
