50Hz-100kHz LCR Meter – 11022/11025

LCR Meter 11022 faceplate



Key Features

  • Datasheet
  • 0.1% basic accuracy
  • Transformer test parameters (11025), Turns Ratio, DCR, Mutual Inductance
  • 0Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz test frequencies
  • 21ms measurement time (≥100Hz)
  • Agilent 4263B LCR Meter commands compatible
  • 4 different output resistance modes selectable for non-linear inductor and capacitor measuring
  • High resolution in low impedance(0.01mΩ) and high accuracy 0.3% till 100mΩ range
  • Adjustable DC bias current up to 200mA (constant 25Ω) (11025)
  • 1320 Bias Current Source directly control capability
  • 0.01mΩ ~ 99.99MΩ wide measurement range (4 1/2 digits)
  • Dual frequency function (11022 option) for automatic production
  • BIAS comparator function
  • Comparator function and 8/99 bin-sorting function
  • Pass/fail judge result for automatic production
  • Handler interface trigger edge (rising/falling) programmable
  • Test signal level monitor function
  • Standard RS-232, GPIB, and Handler I/F
  • Open/short zeroing, load correction
  • LabView® Driver

Description

The Chroma 11022 and 11025 LCR Meters are passive component testers that can give you the most cost effective alternative equivalent to high priced meters. They are designed for demanding applications in production test, incoming inspection, component design, and evaluation. Programmable test signal level settings are from 10mV to 1V in steps of 10mV, and the VM/IM signal level monitor functions allow you to evaluate your devices at the level you specify. Ten test frequencies of 50Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, and 100kHz can be used to evaluate passive components and transformers/LF coils.

Most low cost LCR meters on the market have shortcomings when used for low impedance component evaluation such as large capacitance of electrolytic capacitors and low inductance of coils. As the 11022/11025 are equipped with high resolution (0.01mΩ) in low impedance and high accuracy (0.3%) till 100mΩ range, it can be used to evaluate low impedance components to meet measurement requirements.

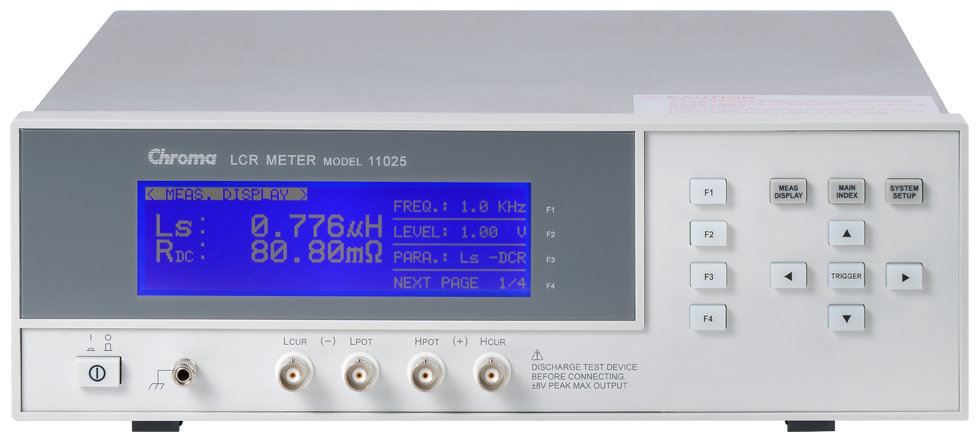

Chroma's 11025 LCR MeterThe 11025 LCR Meter can also measure DC resistance, turn ratio, and mutual inductance of transformers. It is suitable for pulse transformers or LF coil evaluation. The optional Chroma A110207 Transformer Test Fixture when used with the 11025 can measure both the primary and the secondary parameters automatically by changing the internal relays on the 11025. There is no need to change the connections required for measuring transformer parameters. Adjustable internal DC bias current source can be up to 200mA (constant 25Ω) which is a standard function, as the right tool for inductance inspection of telecom transformers and small power chokes under DC bias current.

The 11022/11025 LCR Meters provide a powerful combination of features designed to maximize productivity in all testing environments. The measurement speed in the SHORT integration time mode is 21mS (≥100Hz). The handler interface and pin-out are compatible with the 4263B specification. GPIB Interface and IEEE 488 commands are also compatible with 4263B.

In addition, the 11022/11025 have a built in comparator, 8 bin sorting, trigger delay functions, and handler interface trigger functions, which make them easy for system integration, and improve the measurement throughput as well as reliability.

Model Description
11022 LCR Meter
11025 LCR Meter
Accessories
A110239 4 Terminal SMD Electrolytic Capacitor Test Fixture [11022/11025]
A110244 High Capacitance Capacitor Test Fixture [11022/11025]
A110245 Ring Core Test Fixture [11022]
A132574 Test Fixture for SMD Power Choke [11022/11025]
A133019 Test Leads [11022/1025]

Specifications
Datasheet
User Manuals

Manuals - 11022 LCR

One time registration required in order to download documents. Register or login to continue. 2.67 MB 28 downloads

User Manuals for 11022 50Hz-100kHz LCR Meters. Available documents are: Quick Start Guide Hardware User Manual All files in PDF format. ...

Manuals - 11025 LCR

One time registration required in order to download documents. Register or login to continue. 3.72 MB 22 downloads

User Manuals for 11025 50Hz-100kHz LCR Meters. Available documents are: Quick Start Guide Hardware User Manual All files in PDF format. ...

Application Notes

LCR What Voltage And Current Is Applied To The Unknown

One time registration required in order to download documents. Register or login to continue. 294 203 downloads

This application note describes how to compute the actual voltage and current. ...

LCR Multi Terminal Impedance Measurements

One time registration required in order to download documents. Register or login to continue. 675 KB 200 downloads

This application note explains how the use of multiple connections can reduce or remove impedance measurement errors caused by series impedance in the connections or shunt impedance across the unknown. ...

LCR Product Accessories

One time registration required in order to download documents. Register or login to continue. 210 KB 199 downloads

Provides a list of accessories for LCR meters. ...

LCR And EST Product Interfaces

One time registration required in order to download documents. Register or login to continue. 562 KB 214 downloads

Provides a list of product interfaces for LCR and EST instruments. ...

LCR Equivalent Series Resistance (ESR) Of Capacitors

One time registration required in order to download documents. Register or login to continue. 279 KB 205 downloads

This note answers questions and clarifies confusion that might exist in the definition of ESR in capacitors. ...
