Exploring Programmable AC Power Source
Programmable AC Power Source
Chroma 6400
Uses state of the art PWM technology to deliver pure, instrument grade AC power at a very low cost never achieved before
Power Rating
375VA~2000VA
Voltage Range
150V/300V/Auto
Frequency
45~1000Hz

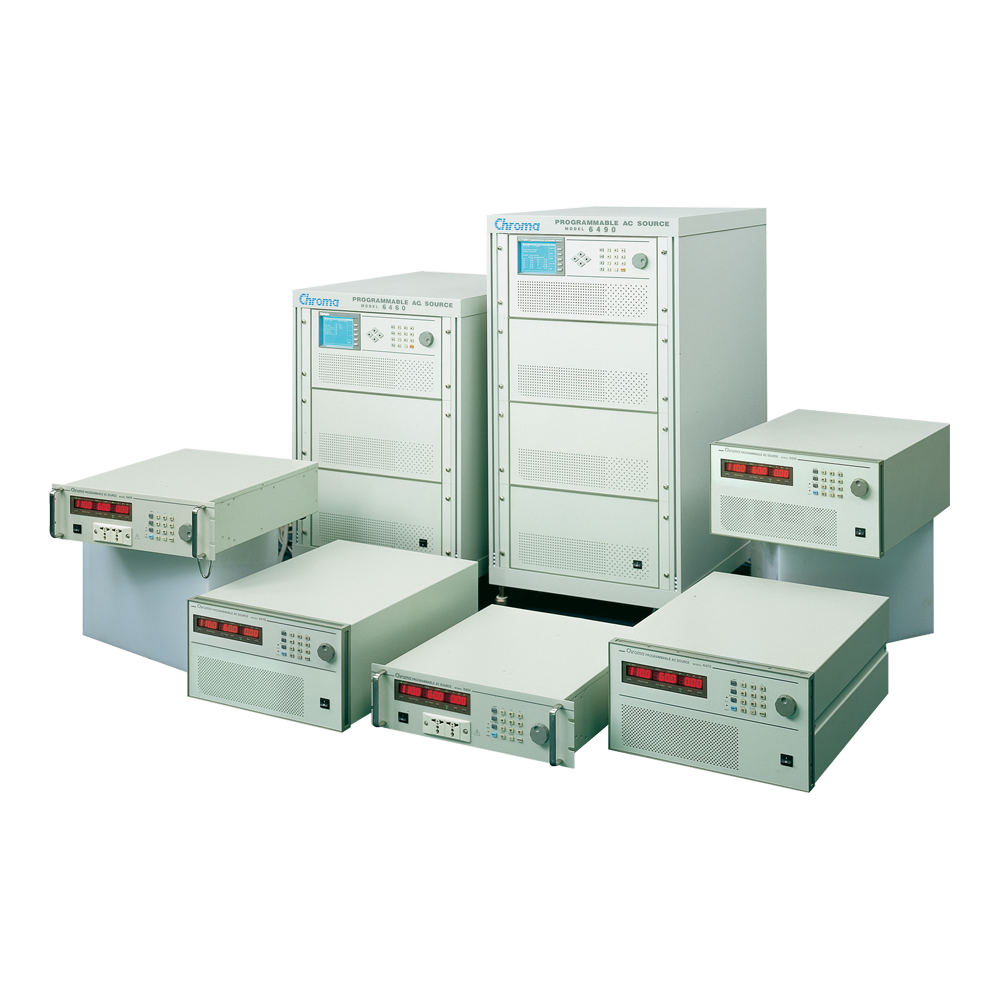

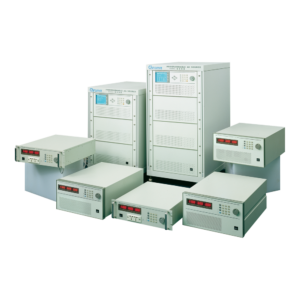

The Chroma 6400 series Programmable AC Power Source uses state of the art PWM technology to deliver pure, instrument grade AC power at a very low cost never achieved before. The 6400 AC power source offers maximum rated power for any output voltage from 0 to 300VAC, at any frequency from 45 to 1K Hz. It is not only suitable for commercial applications (47-63Hz), but also for avionics, marine, military applications at 400Hz.
More Output Power
The 6400 Series AC Power Source supplies very clean output with typical output distortion less than 0.3% THD. The output is transformer isolated (6404 & 6408) providing an exceptionally low total harmonic distortion without sacrificing efficiency. Remote sense connections are provided for superb output regulation to compensate for load line losses while keeping the output at a precise level regardless of output load condition.
Advanced DSP Circuitry
The 6400 Series incorporates input power factor correction circuitry resulting in high efficiency and lower input line current. The 6400 Series employs advanced DSP circuitry (6404 & 6408) or 16-bit measurement circuit to provide precise high-speed measurement of the output for true RMS voltage, true RMS current, true power, frequency, power factor, and current crest factor. These output measurements can be displayed on the large, easy to read, front panel readout.
Wide Output Voltage
The wide output voltage range of 0-300 VAC (0-500VAC for Model 6460) can be selected for either 0-150 VAC or 0-300 VAC, or set to auto-ranging output voltage. The 45-1000 Hz output frequency range provides excellent flexibility in a small compact unit with a great performance / cost ratio. The programmable current limit adds to the flexibility while reducing current flow potential for non-destructive testing easily.
High Accuracy Measurement
Temperature Controlled
Fan Speed
Self-Test at Power-On
Optional GPIB, RS-232, and Analog Programming Interface

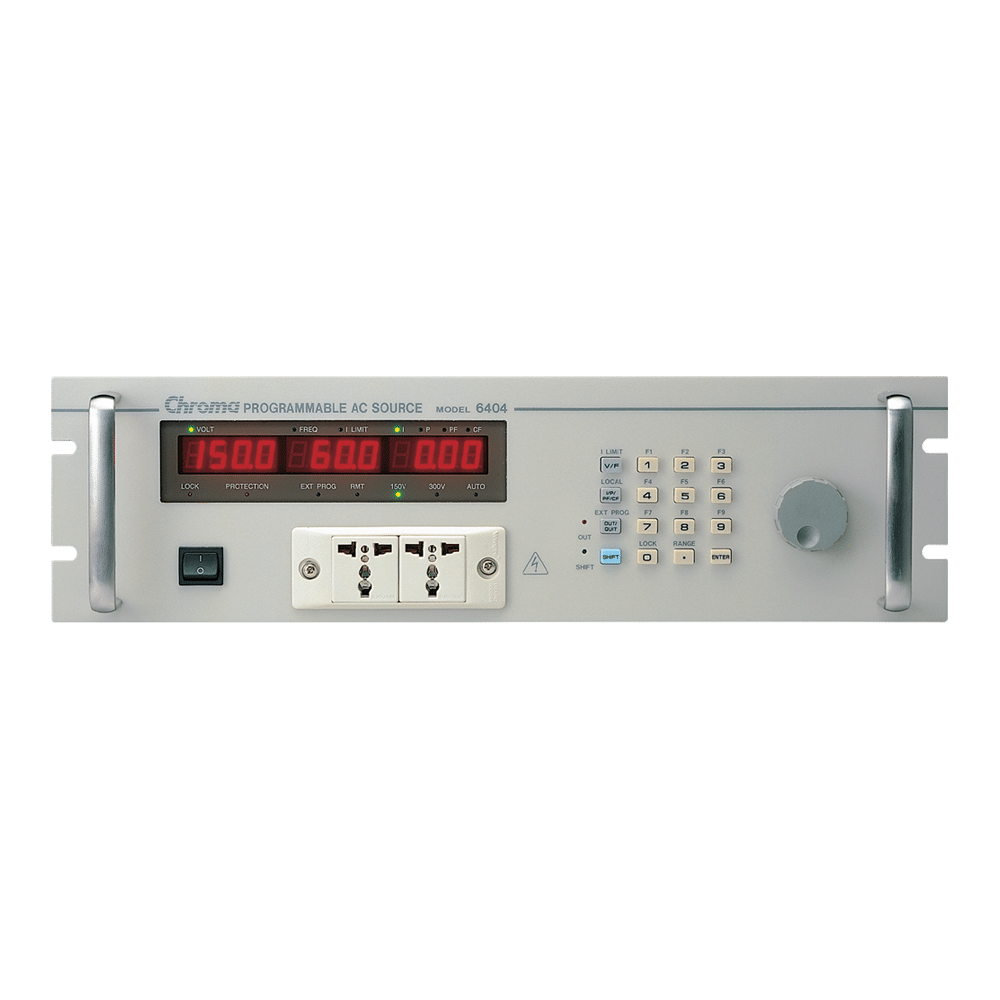

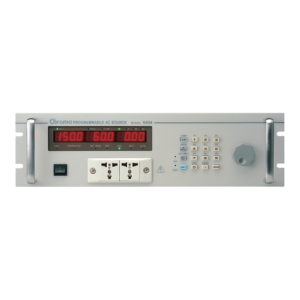

With the small 5.25 inches height packaged (6404 & 6408), and lightweight, the model 6400 is perfectly suitable for bench top applications where space is at a premium. The easy to use and easy to read front panel control/readout system makes setup and quick measurements simple. The front panel receptacles can be used for most line cord plugs without adapters. Rear panel terminals are also provided for hard-wired connections.
Model Options
| Model | Description |
| 6415 | AC Source 0-300V/45-1000Hz (1500VA) |
| 6420 | AC Source 0-300V/45-1000Hz (2000VA) |
| 6430 | AC Source 0-300V/45-1000Hz (3000VA) |
| 6460-2 | Programmable AC Source 0~500V/45-1000Hz (6000VA), output 1Ø, input 3Ø 220V |
| 6460-3 | Programmable AC Source 0~500V/45-1000Hz (6000VA), output 1Ø, input 3Ø 380V |
| 6463-2 | Programmable AC Source 0~500V/45-1000Hz (6000VA), output 1Ø or 3Ø Selectable, input 3Ø 220V |
| 6463-3 | Programmable AC Source 0~300V/45-1000Hz (6000VA), output 1Ø or 3Ø Selectable, input 3Ø 380V |
| 6490-2 | Programmable AC Source 0-300V/45-1000Hz (9000VA), output 1Ø or 3Ø Selectable, input 3Ø 220V |
| 6490-3 | Programmable AC Source 0-300V/45-1000Hz (9000VA), output 1Ø or 3Ø Selectable, input 3Ø 380V |
| Accessories | |
| A640003 | GPIB/RS232 Interface Card [6404/6408] |
| A650001 | GPIB/RS232 Interface Card [6500/6415/6420/6430] |
| 7887 | USB-to-RS232 Adapter Kit [63200/61×00/6×00] |
| A650002 | Rack Mount Kit [6500/6415/6420/6430] |
| A610004 | Universal Socket Center (1 phase<13A) |
| 5768 | SoftPanel for [6400] |
Watch
AC/DC Electric Vehicle Supply Equipment (EVSE) Testing Solution
Programmable AC Power and Regenerative Grid Simulators with a wide range of voltage, current, and power for simulating AC mains and line fault conditions. Choose from single and three phase output AC power sources with power levels range from 500VA to 630kVA for design validation, production, and education either in the lab or in automated testing applications.
Related Products
Missing
High Power Programmable AC Source with Transients
Chroma 61510
12kVA / 18kVA
0~150V/0~300V/Auto
DC, 15Hz~1.5kHz
Ideal for commercial, power electronics, avionics, military, and regulation test applications from bench-top R/D design verification to quality assurance and mass production
Missing

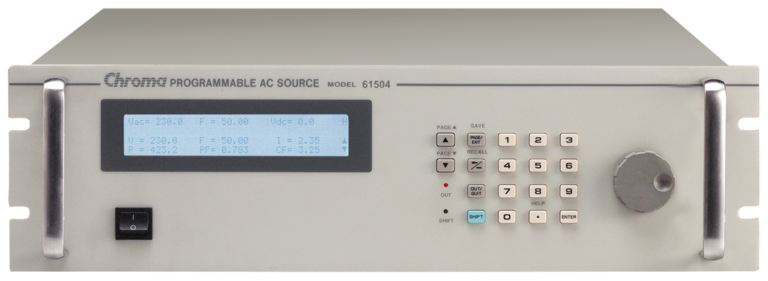

Low Power Programmable AC Power Source with Transients
Chroma 61500
500VA / 1.5kVA / 2kVA / 4kVA
0~150V/0~300V/Auto
DC, 15Hz~1kHz
Equipped with a host of powerful features: power line disturbance (PLD) simulation, programmable output impedance, comprehensive measurement functions, waveshape synthesis and regulation test software
Missing
High Power Programmable AC Source
Chroma 61610
12kVA / 18kVA
0~150V/0~300V/Auto
DC, 15Hz~1.5kHz
Simulate various AC line input conditions and measurement of critical characteristics for products under test
Missing

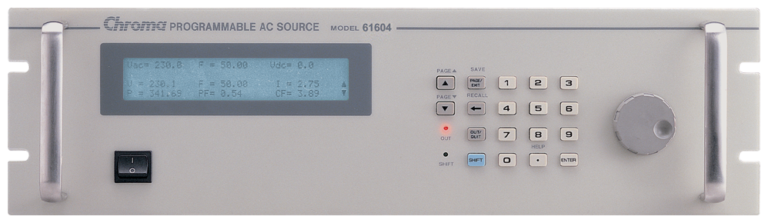

Low Power Programmable AC Source
