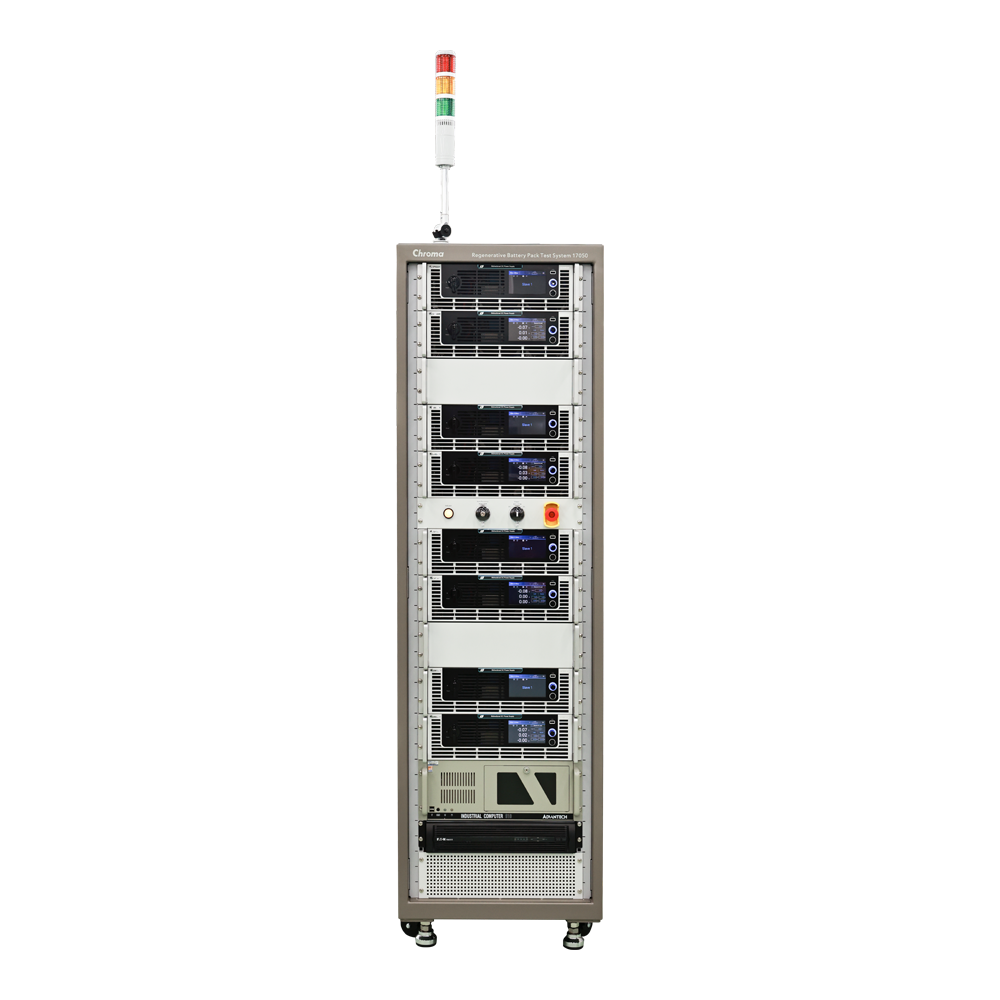

Exploring Scalable Battery Module/Pack Test System
Scalable Battery Module/Pack Test System
Chroma 17050
High-power, flexible test system designed to evaluate the performance, safety, and lifecycle of battery modules and packs under real-world conditions
Power Rating
1-4 Channels Each 6kW-1.08MW
Software
BatteryPro X,
Wide Voltage Range:
Auto-ranging power stages with available models covering from 33V to 2000V at full power
High-power, flexible test system designed to evaluate the performance, safety, and lifecycle of battery modules and packs under real world conditions. The Chroma 17050 integrates with BMS and environmental controls to run automated test sequences, simulate drive cycles, and collect detailed data for analysis and validation.
- Power Rating: 1-4 Channels Each 6kW-1.08MW
- Software: Powered by BatteryPro X, designed for versatile battery module/ pack testing
- Control & Integration: Seamless communication with BMS, chamber/chiller control, data loggers, CANbus, and digital I/O
- Flexible System Architecture: 3-tier recipe hierarchy—Step → Sub-recipe → Main-recipe → Test Plan, with up to 500 million steps
- Wide Voltage Range: Auto-ranging power stages with available models covering from 33V to 2000V at full power
- Advanced Software Functions: Supports Drive Simulation, DCIR Calculation, VCU Simulation, EOL (Go/ No Go) judgment and auto report generation
- Versatile 62000D Power Stages: In addition can be used standalone as a Power Supply, Regenerative Load, Solar Array Simulator, Fuel Cell Simulator or Battery Simulator
Key Features
Energy Recycling
The system features regenerative technology that recovers the large amount of power normally dissipated as heat during battery cycling. This not only reduces energy consumption but also ensures stable test performance without introducing harmonic interference to other equipment. The recovered energy can be fed back to the grid for reuse, easing the load on power infrastructure, reducing thermal management challenges, and aligning with green energy policies.
Discharge Energy Recovery
– Energy can be recycled back to the grid or internal loads, with recovery efficiency >90%.
– Low heat output reduces air-conditioning demand and lowers operating costs.
– At rated power, the power factor (PF) exceeds 0.95.
The system delivers high power testing capability even in space- limited environments. A single cabinet achieves a maximum power density of 106kW/m³ while weighing only 740kg, minimizing footprint and saving valuable floor space.
Suitable for Space-Constrained Applications
The 17050 model can be configured to communicate with stand- alone units and DC sources designated by Chroma. With Chroma’s Battery Pro X software, each channel can perform independent testing to meet a wide range of battery pack requirements. The system also supports integration with chambers and chillers, and unlike fixed rack-based setups, offers greater flexibility for use in space-limited test environments.
BMS Communication Functions
– Uses the Chroma 80700-5 standard chassis integrated with the A692017/4CH CAN (FD) bus communication card module to perform BMS communication.
– Channels can be bound to the BMS to capture and record DUT data, with cutoff and protection logic executed in synchronization with the acquired data.
Versatile Programming
The Chroma 17050 system, together with Chroma’s Battery Pro X software, offers flexible programming with an intuitive interface for editing and executing test steps. The software supports graphical creation of test programs, predefined test modules, real-time data monitoring, and seamless integration with external equipment. These features make test configuration more accurate and more efficient, meeting the needs of demanding applications.
With Chroma’s Battery Pro X software integrated with third-party hardware, abnormal conditions can be detected in real time, triggering charge/discharge protection to stop the test. Combined with a BMS designated by Chroma and a data logger, the system achieves sampling latency of less than 10ms. This capability supports battery performance prediction, degradation analysis, and protection parameter verification, while ensuring accurate test status monitoring, data recording, fault diagnosis, and safety protection.
| Power | 1-4 Channels Each 6kW-1.08MW | |||
|---|---|---|---|---|
|
6kW |
100V/180A |
600V/40A |
— |
— |
|
12kW |
100V/360A |
600V/80A |
1200V/40A |
— |
|
18kW |
100V/540A |
600V/120A |
1200V/40A |
1800V/40A |
|
36kW |
100V/1080A |
650V/180A |
1200V/80A |
2000V/60A |
|
45kW |
— |
650V/180A |
— |
2000V/60A |
|
90kW |
100V/2700A |
650V/360A |
1200V/200A |
2000V/120A |
|
180kW |
100V/5400A |
650V/720A |
1200V/400A |
2000V/240A |
|
360kW |
100V/10800A |
650V/1440A |
1200V/1200A |
2000V/480A |
|
540KW |
— |
650V/2160A |
— |
2000V/720A |
|
1.08MW |
— |
650V/4320A |
— |
2000V/1440A |
Model Options
| Model | Description |
| 17050 | Regenerative Battery Pack Test System |
| 17050 | Regenerative Battery Pack Test System 144kW, 200V |
| 17050 | Regenerative Battery Pack Test System 360kW, 100V |
| 17050 | Regenerative Battery Pack Test System 720kW, 600V |
| 17050 | Regenerative Battery Pack Test System 720kW, 1200V |
| 17050 | Regenerative Battery Pack Test System 1440kW, 2000V |
| 17050 | Regenerative Battery Pack Test System 1800kW, 2000V |
Graphic User Interface - Battery Pro X
Recipe Editor
- Two-layered recipe list
- 500 charge/discharge conditions
- Set dual-layer loops (cycle & loop) with 999999 loops per layer
- Edit dynamic charge/discharge waveforms with 10ms current switching speed
- Testing steps: CV/CC/CP/CC-CV/Waveform current/DCIR
- Cut-off conditions (time, current, capacity, cut-off voltage, cut-off current, etc.)
- Next Step options: Next/End/Jump/Rest
Statistical Reports
- Detailed report and step report generation
- Customized report format, exports test reports in PDF, CSV and XLS
- Graphical report function
- Report analysis function: create customized reports such as life-cycle report, Q (AH)-V (V) report, and V(V)/I(A)/T (ºC)-time report through user-defined X and Y axis parameters
- Real-time browsing of per-channel test reports
Customized Step
- Second development
- Applied to different regulations
- Full support on local speedy
- Similar as PP3 which test item build by test command
VCU simulation (BMS Control)
- Send heartbeat w/ live-count & CRC
- Release UDS command by Software
- Control the switch of battery pack
EOL Mode
- Display for operator (Go/ No Go)
- SN binding and Judgment condition setting
- Final report wizard and Easy to upload test result
