Electric Vehicle

EV Automotive and Battery Test Advancements

Power conversion within an electric vehicle (EV) includes AC or DC EVSE (EV Supply Equipment), onboard charger, DC-DC converter, and motor driver. Chroma’s EV automated test equipment addresses the specialized requirements involved in testing the power electronics of electric vehicles during design validation as well as production. The benefits include flexibility, speed, and test data recording, as well as providing statistical analytical reports for design review and product improvement.

OBC & DC-DC Converter Power HIL Testbed-8620

OBC & DC-DC Converter Power HIL Testbed

Chroma 8620

Designed for testing electric vehicle charging systems and powertrain components; supports customized hardware configuration, platform sharing, and expansion

Battery Pack Power HIL Testbed

Chroma 8610

For testing battery systems and components of new energy vehicles, including the battery module, battery management system, and cooling/heating system

EV Wireless Power Transfer

Chroma 8000

Specifically designed for EV Wireless Power Transfer (WPT) verification. Comprised of a Chroma 8000 ATS and a WPT testing platform.

Electric Vehicle Charging Compatibility ATS

Chroma C8000

The world’s first UL approved SAE J1772 EVSE Communication Protocol Automated Test System. This system simulates various states of an EVSE to validate charging compatibility before delivery to the vehicle.

Our solution consists of standard test platforms combined into one expandable test system to test most power components in an EV’s power system.

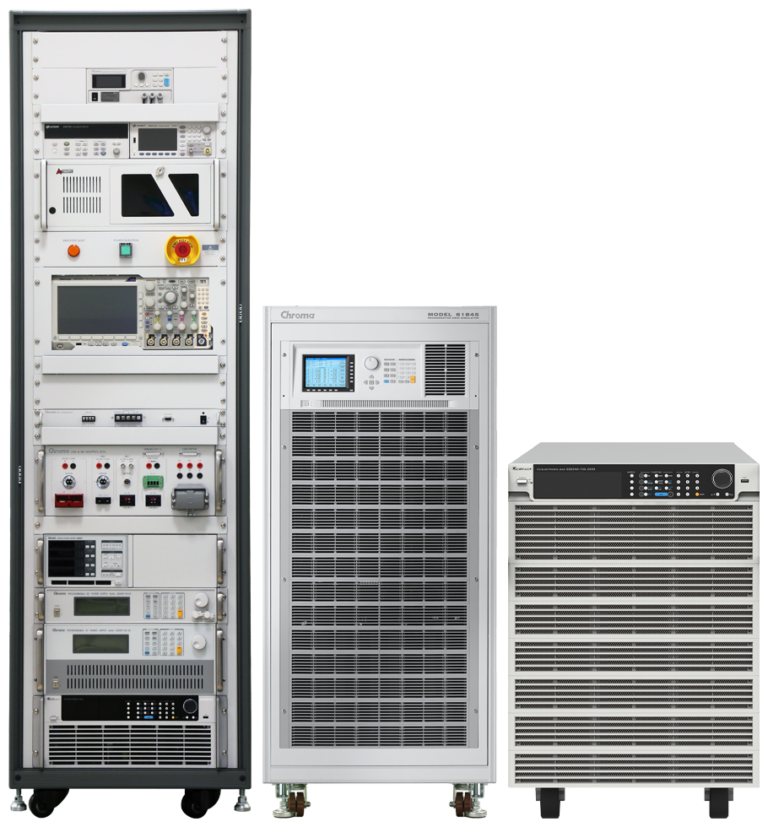

The Chroma 8000 Automated Test System:

  • Meets the requirements of SAEJ1772 and GB/T 18487.1 for full function testing of AC Level 1 and 2 electric vehicle supply equipment (EVSE)

  • Can be configured with AC and DC power supplies, electronic loads, power analyzers, oscilloscopes, DMMs, as well as digital and analog cards to address the requirements of multiple power electronic systems

  • Includes a wide range of pre-written tests and the ability to create custom tests; also provides automatic data recording and statistical report generation

Electric Vehicle Test Solutions

Get an overview of the entire scope of testing with reliable, precision instrumentation and systems including electrical safety testing for multiple applications.
