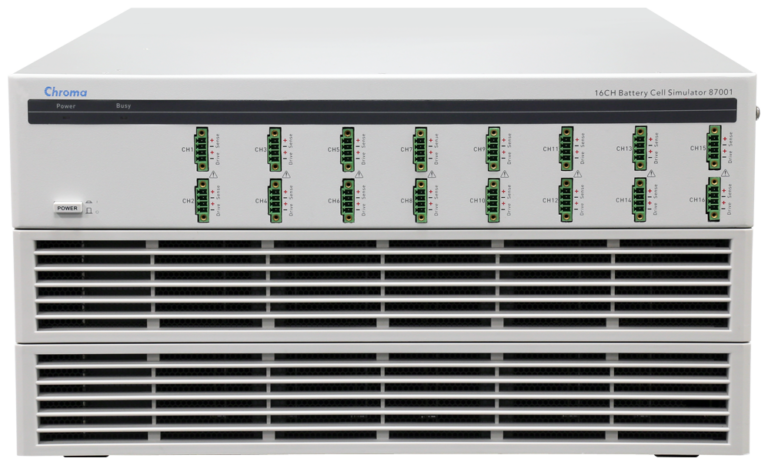

16CH Battery Cell Simulator
Chroma 87001
16
Max. 10A
1.2kVA
Switch fast charge and discharge current in current source mode without any interruption.
High precision, integrated battery charge / discharge cycle test systems designed for lithium ion and other chemistries and applications including EV batteries and energy storage systems

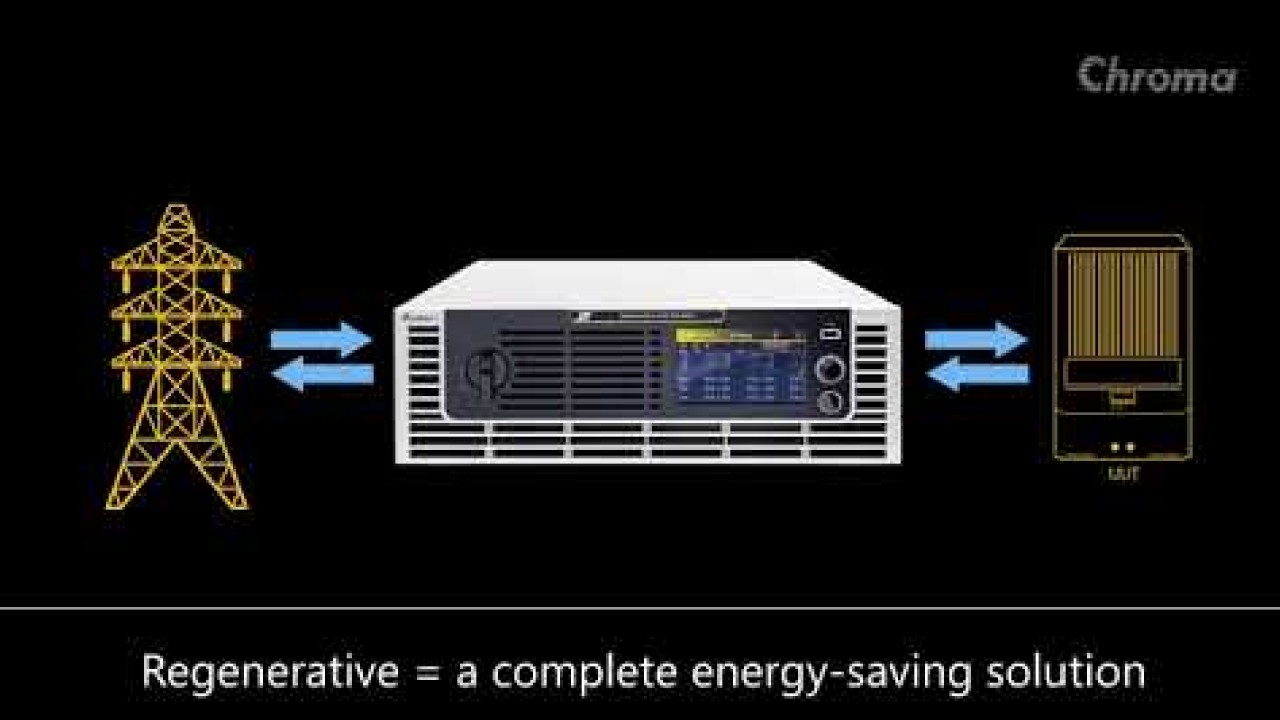

Chroma’s battery test equipment provides advanced features including regenerative discharge systems that recycles energy from the battery back into the channels in the system or to the grid. Systems are configurable and flexible with multiple channel capabilities that can be upgraded as testing requirements change.
Battery Simulator
Chroma A170202
Validate your battery-connected devices more efficiently and with more accuracy with this battery simulator

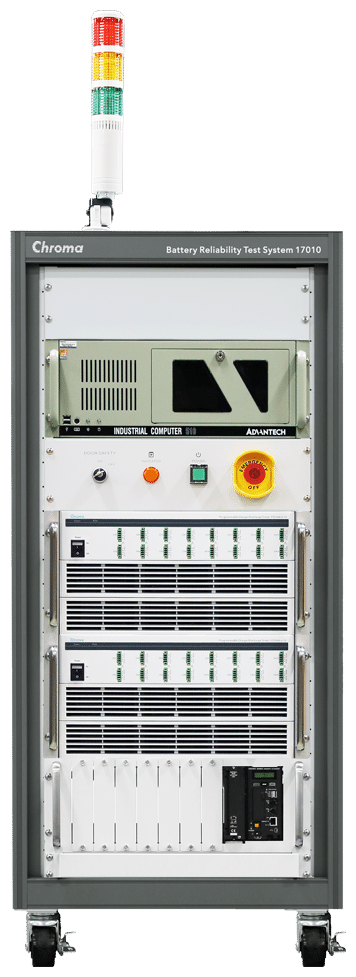

Battery Reliability Test System 17010
Chroma 17010
Up to ±0.015% of full scale
Up to 100µS
Up to 10mS
Chroma’s 17010 Battery Reliability Test System is a high-precision battery reliability test system designed specifically for testing lithium-ion battery (LIB) cells, electric double-layer capacitors (EDLCs), and lithium-ion capacitors (LICs).

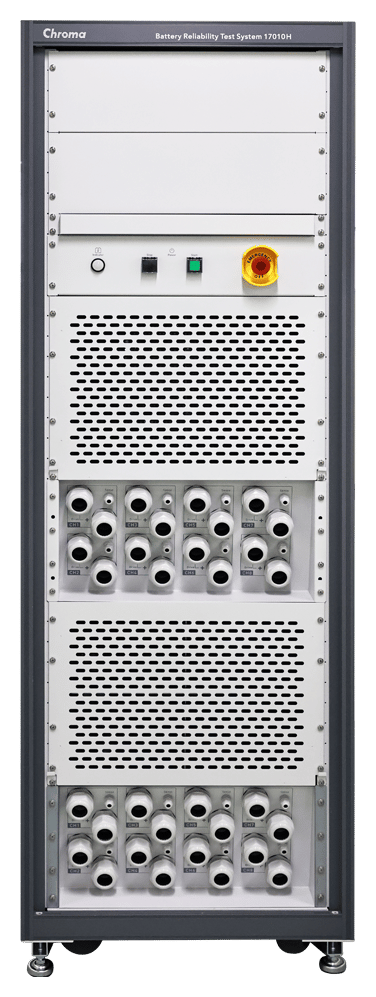

Battery Reliability Test System 17010H
Chroma 17010H
±0.015% of F.S.
±0.005% of F.S.
300A/150A/30A
The Chroma 17010H is a battery reliability test system providing high-precision charge and discharge test equipment specifically designed for high current/high power performance testing.

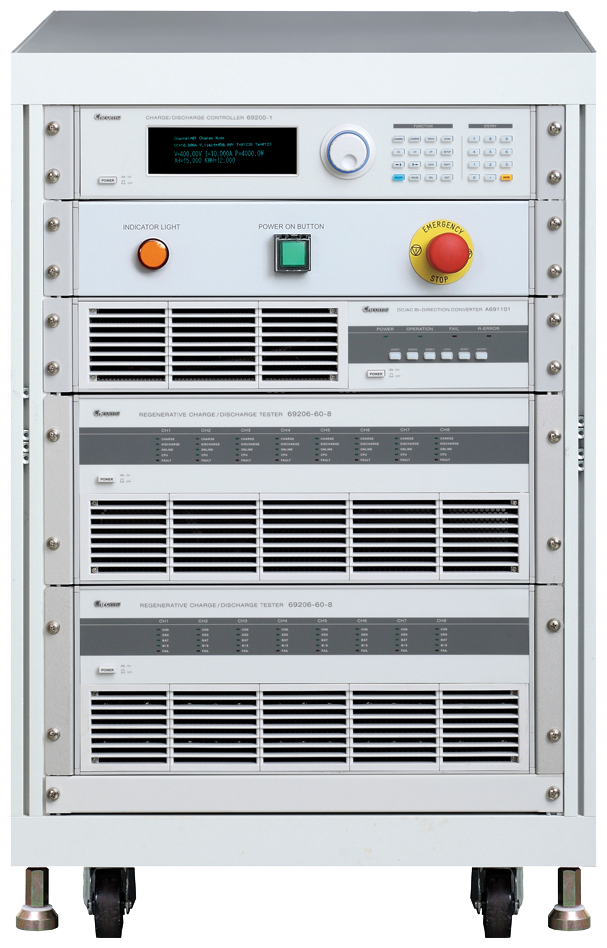

Regenerative Battery Pack Test System
Chroma 17020
20V/ 60V/ 100V/ 200V/ 500V
65A/ 13A/ 62.5A/ 50A/ 30A
1.25kW/ 600W/ 2.5kW
Designed for secondary battery modules and pack tests, with accurate sources and measurements suitable for performing repetitive and reliable tests.
Regenerative Battery Pack Test System 17020C
Chroma 17020C
10KW-80kW per channel with addition of 10kW per module
150V
100A per channel and parallel up to 800A
High-precision system designed for repeated and reliable testing of secondary battery modules and packs; ideal for incoming and outgoing inspections as well as capacity, performance, production, and qualification testing. As a regenerative battery pack test system, the Chroma 17020C recycles discharge energy back to the grid while delivering 10kW to 80kW per channel at 150V.
Regenerative Battery Pack Test System 17020E
Chroma 17020E
10kW / 20kW / 30kW / 40kW / 50kW / 60kW / 70kW / 80kW per channel
60V / 100V / 200V
100A / 200A / 300A / 400A / 500A / 600A / 700A / 800A per channel
High precision system specifically designed for secondary battery module and pack testing

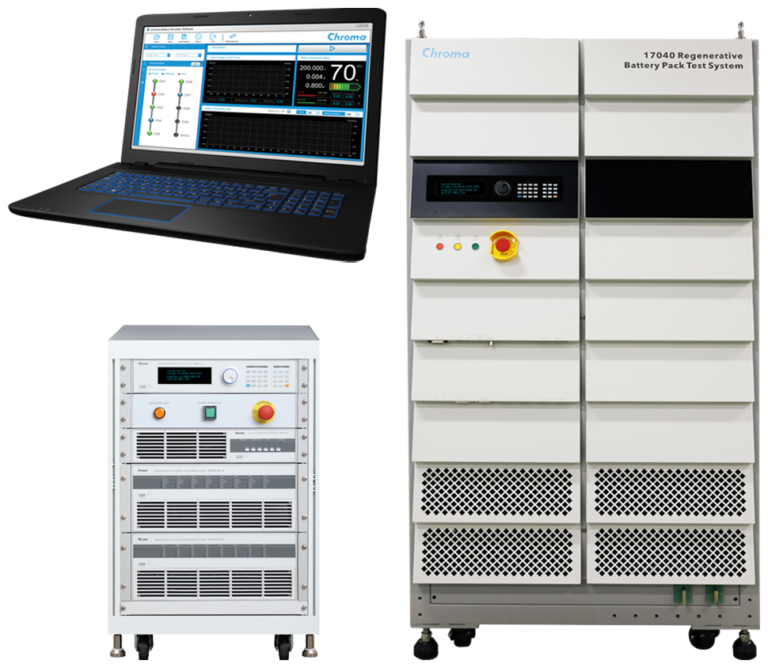

Regenerative Battery Pack Test System 17040
Chroma 17040
60kW/ 120kW/ 180kW/ 250kW/ 300kW
60~1000V
±0.1%FS
With an Energy Regenerative Function to reduce power consumption during discharge, ensuring a stable power grid without generating harmonic pollution on other devices. The Chroma 17040 regenerative battery pack test system is offered from 60kW to 300kW across a 60V to 1000V range.
Regenerative Battery Pack Test System 17040E
Chroma 17040E
100kW*14, 200kW, 200kW*14, 300kW*14
5~850V, 100~1700V
0.1%F.S.
High-power battery test system up to 1700V/4800A/1.2MW with regenerative capabilities, dynamic profile simulation, and advanced safety features. The Chroma 17040E regenerative battery pack test system covers cell to pack level charge and discharge testing with real-time monitoring.
Scalable Battery Module and Pack Test System 17050
Chroma 17050
1-4 Channels Each 6kW-1.08MW
BatteryPro X,
Auto-ranging power stages with available models covering from 33V to 2000V at full power
High-power, flexible test system designed to evaluate the performance, safety, and lifecycle of battery modules and packs under real-world conditions. The Chroma 17050 battery module and pack test system scales from 6kW to 1.08MW across 1 to 4 channels, covering 33V to 2000V at full power.

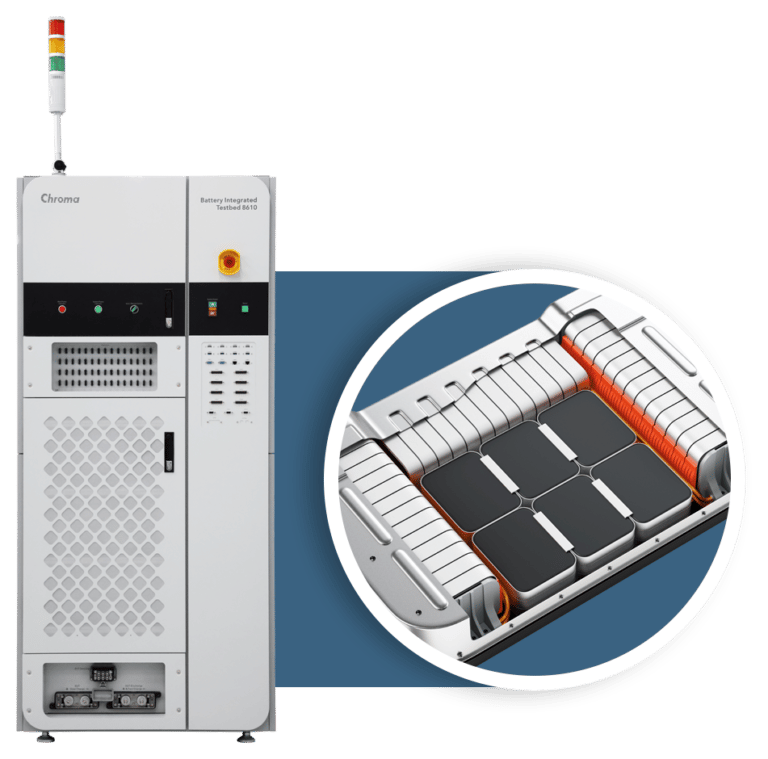

Battery Pack Power HIL Testbed
Chroma 8610
For testing battery systems and components of new energy vehicles, including the battery module, battery management system, and cooling/heating system

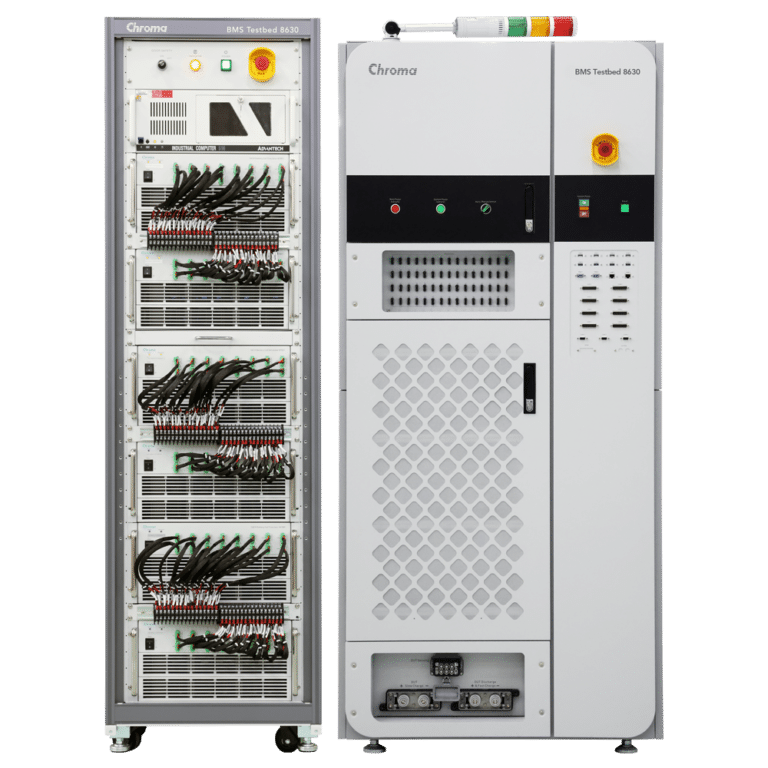

BMS Power Hardware-in-the-Loop (HIL) Testbed 8630
Chroma 8630
Designed to simulate a range of BMS component characteristics, including cell simulation, battery module voltage/current simulation, and temperature signal simulation.
Battery Pack Automated Test System (ATS) 8720
Chroma 8720
5kW ~ 350kW
0V~900V
0A~1000A
The Chroma 8720 battery pack automated test system tests the battery packs in end of line (EOL) production for a comprehensive Pass/Fail check, including mechanism assembly, pressure insulation, BMS communication, internal high voltage relay parts, battery balance, and temperature distribution, etc.

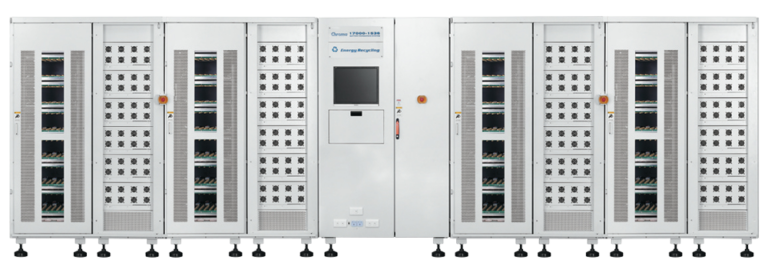

Battery Cell Formation System 17000 Turnkey Solution
Chroma 17000
100kW*14, 200kW, 200kW*14, 300kW*14
5~850V, 100~1700V
0.1%F.S.
With built-in parallel channels and dynamic profile simulation functions; parallel capability maximizes the charge and discharge current and power, increasing the efficiency and flexibility of equipment utilization. The Chroma 17000 battery cell formation system carries that through the whole line, from barcode binding to final cell binning.

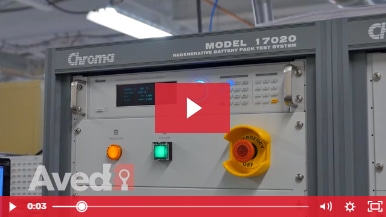

Aved’s Automated Battery Pack Testing

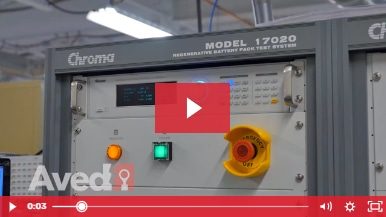

Aved Electronics is one of New England’s largest and most trusted independent battery pack producers. Watch Aved’s video on using the Chroma 17020 Regenerative Battery tester for their production. The button below will take you to Aved’s website.

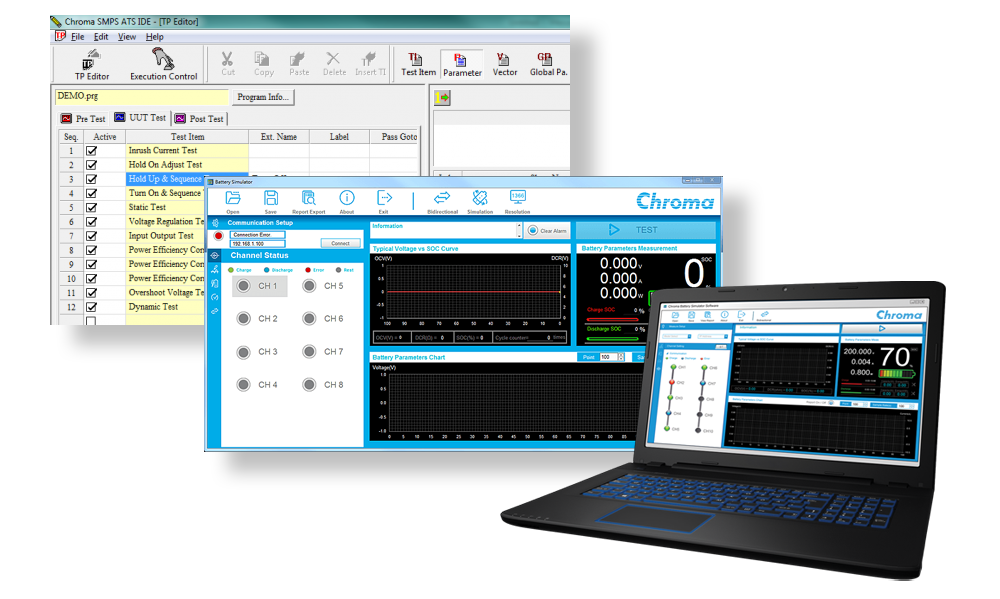

Software and SoftPanels
Battery Pro
Battery Pro is an intuitive, multi-channel test software platform designed for cell to pack level charge-discharge testing with real-time monitoring.
Power Pro
Designed for power conversion applications, PowerPro provides an editable library of over 35 pre-written commonly used tests.
Battery Simulator
Our Battery Simulation software is used to validate device functions during development in lieu of an actual battery or batteries.
Battery LEx
Create up to 500 projects and construct corresponding test plans according to different DUT types or requirements.
