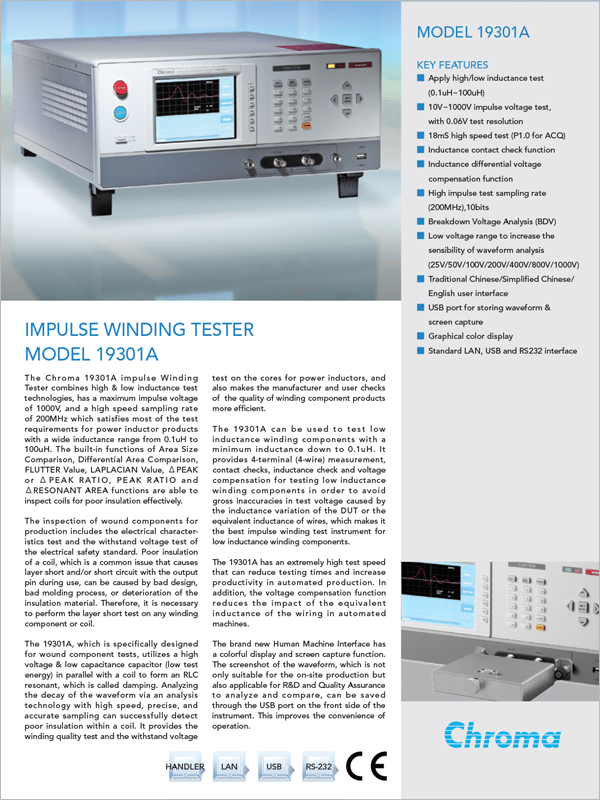

Datasheet | Power Inductor – Impulse Winding Tester – 19301A
The Chroma 19301A impulse Winding Tester combines high & low inductance test technologies, has a maximum impulse voltage of 1000V, and a high speed sampling rate of 200MHz which satisfies most of the test requirements for power inductor products with a wide inductance range from 0.1uH to 100uH. The built-in functions of Area Size Comparison, Differential Area Comparison, FLUTTER Value, LAPLACIAN Value, ΔPEAK or ΔPEAK RATIO, PEAK RATIO and ΔRESONANT AREA functions are able to inspect coils...
Version
Categories,
Download71
Size1.97 MB
Create DateSeptember 15, 2021
Last UpdatedJune 2, 2023
