PV Inverter Test System

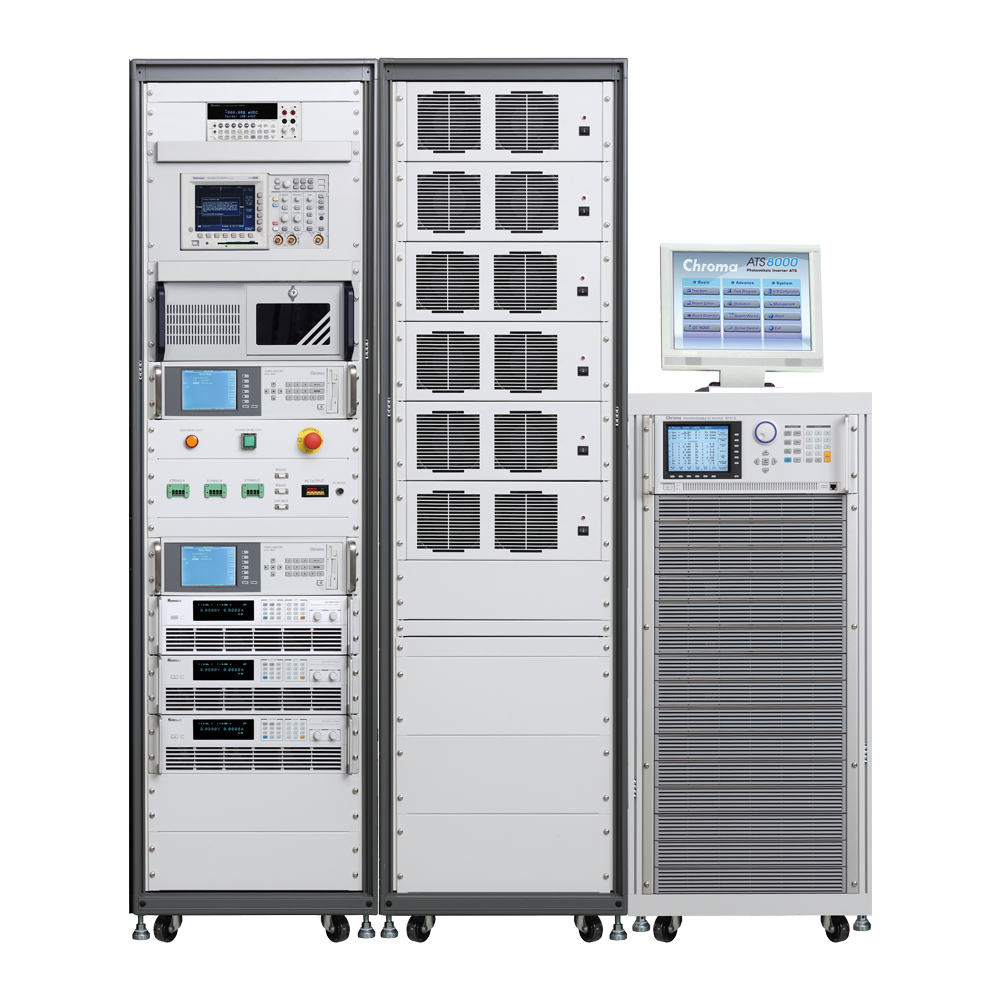

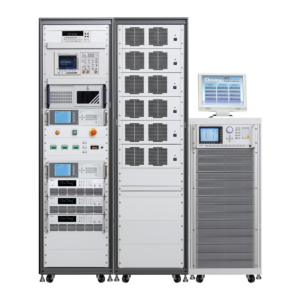

Chroma C8000

  • Open architecture software platform
  • Support instrument with GPIB/RS-232 or RS-485/I2C/CAN BUS interfaces
  • User editable test item, test program, & report format

Chroma 8000 uses a unique test command optimization technology to prevent repeating control commands from being sent to the system hardware devices. This improves the system test speed dramatically and makes the Chroma 8000, which uses open software architecture, highly efficient as a closed or optimized auto test system. With powerful report, statistic and management functions, Chroma 8000 is able to provide complete tools to generate various test documents and perform system administration.

Key Features

  • Open architecture software platform
  • Support instrument with GPIB/RS-232 or RS-485/I2C/CAN BUS interfaces
  • User editable test item, test program, & report format
  • Statistical report
  • On-line control function
  • User authority control
  • Activity log
  • Master/Slave control mode
  • Multi-UUT test capability for single-output PSU
  • Support bar code reader
  • Support Shop-floor control
  • Remote monitoring via internet
  • Test command optimizer helps to improve test speed
  • Capable of coding for any power supply testing applications
  • Comprehensive hardware modules provide high accuracy and repetitive measurements
  • High test throughput by system default test items
  • Cost effective
  • Other hardware expandable upon request
  • Windows 98/NT/2000 or higher based software

Power electronics test solutions for photovoltaic (PV) inverters

62000H-S Series Programmable DC Power Supply: replaces the DC output of solar panels and also features the unique capability to simulate the I-V curve of solar panels. This feature is used to evaluate the performance of PV inverters for maximum power point tracking (MPPT) testing.

61800 Series Regenerative Grid Simulator Power Supply: a dual-purpose instrument that can simulate the grid and serve as an AC load at the same time. It can simulate various voltage and frequency outputs, making it suitable for testing the grid-connected functionality of inverters. For standalone PV inverters, the 61800 series can operate in a four-quadrant AC load mode, simulating capacitive loads with leading phase current or inductive loads with lagging phase current. It can also recycle the output energy during the testing process.

66200 Series Digital Power Meter: can measure various parameters of the output of PV inverters, such as voltage, current, power, power factor, harmonic components of each phase, and total harmonic distortion.

Optimized Test Items

The optimized test item covers 5 types of power supply test requirements. The Output Performance test verifies the output characteristics of the UUT. The Input Characteristic test checks the UUT input parameters. Timing & Transient tests the timing and transient states during protection. The Protection TESTS trigger and test the protection circuit, the Special Test provides means to test the most sophisticated UUT when unique test routines are needed.

*The RLC load is required. This system can test automatically and meet regulations of multiple anti-islanding protection test conditions to save test time. It not only fits R&D and QC, but also very suitable for production line.

  • Output Performances
  • Output Voltage
  • Output Current
  • Output Power
  • Output Power Factor
  • EFF (CEC/European/Conversion/Max)
  • DC injection Current
  • THD
  • Current Harmonic Test
  • Night Time Power Consumption

  • Input Characteristics
  • Input Voltage
  • Input MPPT Voltage
  • Input Current
  • Input Power
  • Input MPPT Power

  • Timing & Transient
  • OVP/UVP Trip Time
  • OFP/UFP Trip Time
  • Anti-Islanding Trip Time*
  • Re On-Grid Time

  • Protection Tests
  • OV/UV Protection
  • OF/UF Protection
  • Anti-Islanding*

  • Special Tests
  • MPPT Efficiency
  • MPPT Time
  • MPPT Record
  • RS232/485/CAN communication

Standard Test Items

  • CEC/European/Conversion Efficiency Test (Sandia, EN50530, CGC/GF004:2011)
  • CEC/European/Total Efficiency Test (Sandia, EN50530, CGC/GF004:2011)
  • Input Output Test (Sandia, EN50530, CGC/GF004:2011, JETGR0002-1-2.0)
  • MPPT Efficiency Test (Sandia, EN50530, CGC/GF004:2011)
  • MPPT Voltage Range Test (Sandia, EN50530)
  • Current Harmonics Test (IEEE 1547 & IEEE 1547.1, UL 1741, CGC/GF004:2001, GB/T 19939)
  • DC Injection Current Test (IEEE 1547 & IEEE 1547.1, UL 1741, CGC/GF004:2001, GB/T 19939)
  • OFP/UFP Protection Test (IEEE 1547 & IEEE 1547.1, UL 1741, CGC/GF004:2001, GB/T 19939, JETGR0002-1-2.0)
  • OVP/UVP Protection Test (IEEE 1547 & IEEE 1547.1, UL 1741, CGC/GF004:2001, GB/T 19939, JETGR0002-1-2.0)

Solar Energy System Device testing

UL 1741-SA, and IEEE 1547 are the 2 most common Standards for certification of PV Inverters. DC Input to the PV Inverter testing requires simulation of Solar Array power. Chroma's Family of 62000H-S DC power supplies have the internal control and programmability for Solar Array Simulation. Verification and Certification testing includes:

  • Anti-islanding
  • Low/High Voltage Ride Through
  • Low/High-Frequency Ride Through
  • Must Trip Test
  • Ramp Rate (Normal & Soft-Start)
  • Specified Power Factor
  • Volt/VarMode
  • Frequency Watt
  • Volt Watt

PowerPro

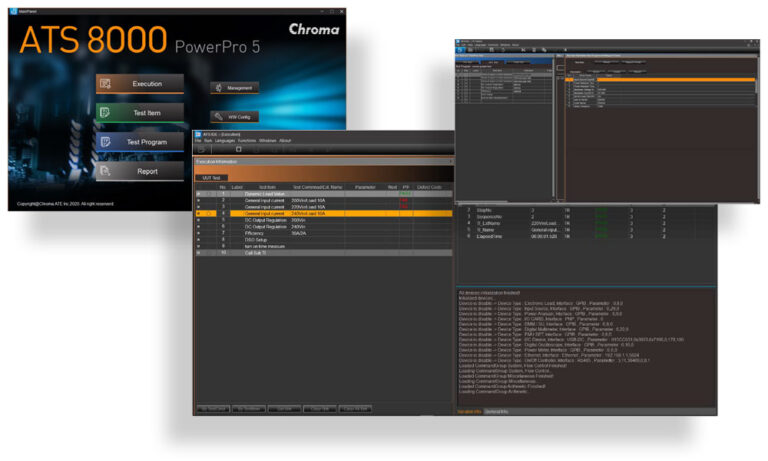

Enterprise Wide Automation Software Platform

PowerPro 5 is designed for automated testing of various power conversion devices and power supplies. A wide selection of hardware options is available for integration, including programmable AC/ DC power supplies, electronic loads, digital multimeters, oscilloscopes, timing/noise analyzers, and short circuit and overvoltage protection testers. Combined with Chroma’s PowerPro 5 open software architecture, provides users with a versatile, powerful, and cost-effective automated testing system capable of meeting the testing needs of any form of power supply.

Watch

Chroma 8000 PV Inverter Automatic Test Application

This auto test system uses the unique test command optimization technology to prevent the repeating control commands from sending to the system hardware devices. This improves the system test speed dramatically and makes Chroma 8000, which uses open software architecture, highly efficient as a close or optimized auto test system.

Webinar: Testing PV Inverters and Solar Energy System Devices

Our test instrumentation provides means to further the development, reliability, and validation of grid-tied, off-grid, and hybrid solar PV inverters that will eventually be used in commercial and household applications for years to come. This seminar focuses on functional testing of the PV inverter and highlights solar panel/array and energy storage systems test.
