Electronic Load for Low Voltage, High Current Applications

As server computers and networking systems become more powerful, point of load DC/DC voltages for CPUs are continuing trend lower (below 1V) while demanding higher currents. To satisfy the needs of test engineers, we have released a new DC electronic load for low voltage, high current applications.

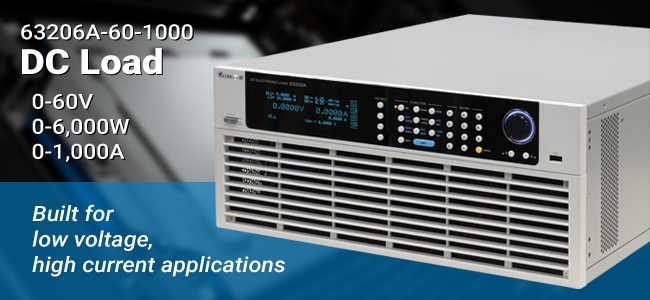

The 63200A-60-1000 DC Electronic Load provides up to 1,000A @ 0.6V (it derates linearly to lower voltages, e.g. 500A @ 0.3V) and has an overall operating range of 0-60V & 0-1,000A at 6kW. These loads also include sine wave loading, dynamic frequency sweep to 50kHz, digitizing, MPPT, and the highest accuracy available (voltage 0.015%+0.015%F.S. and current 0.05%+0.05%F.S.) – all with an incredibly high power density @4U high.
