Exploring LED Tube – 5104 High Speed In-line Test System

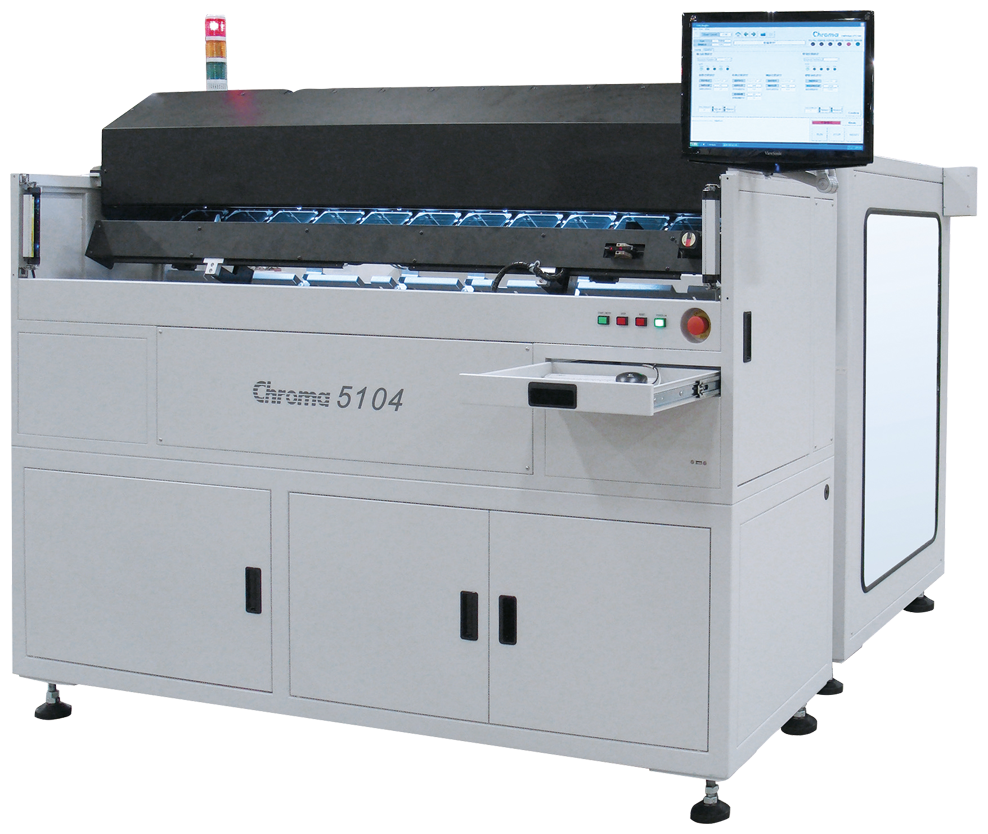

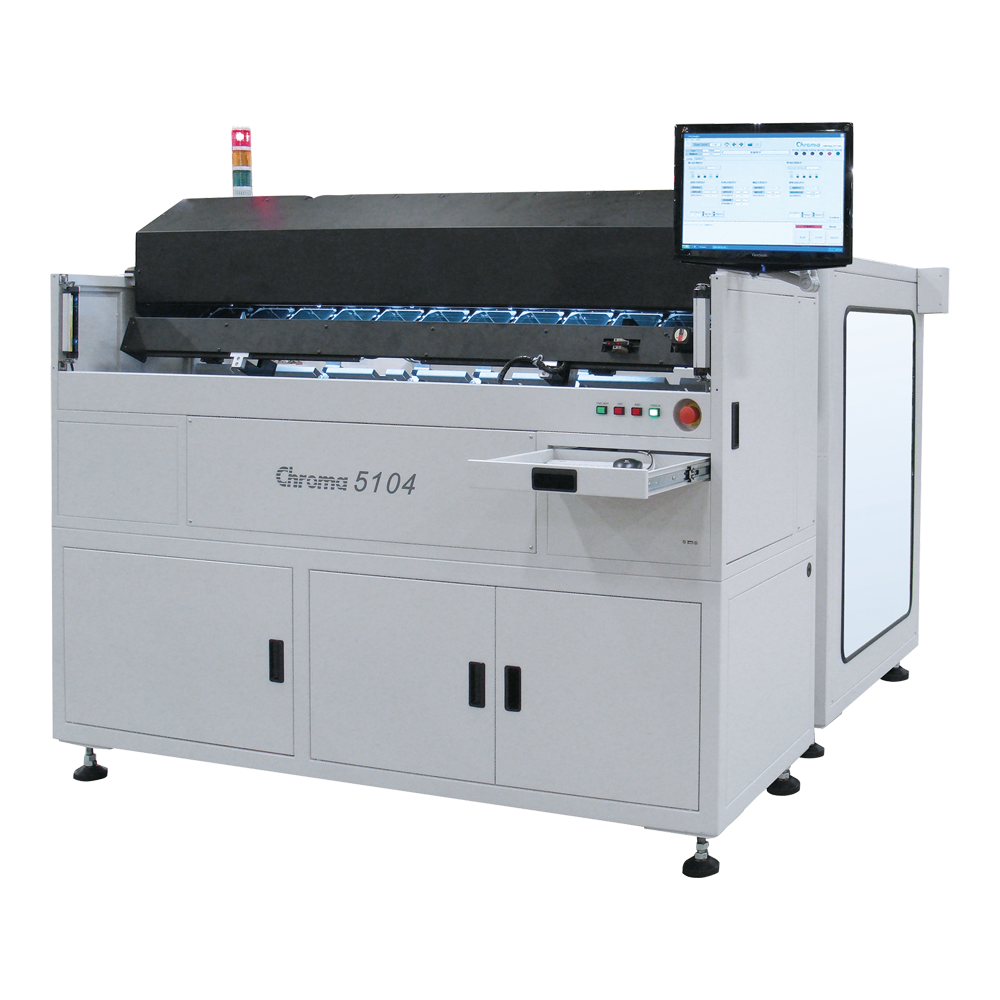

LED Tube - 5104 High Speed In-line Test System
Perfect for increasing output of an LED Tube Automation Test Line

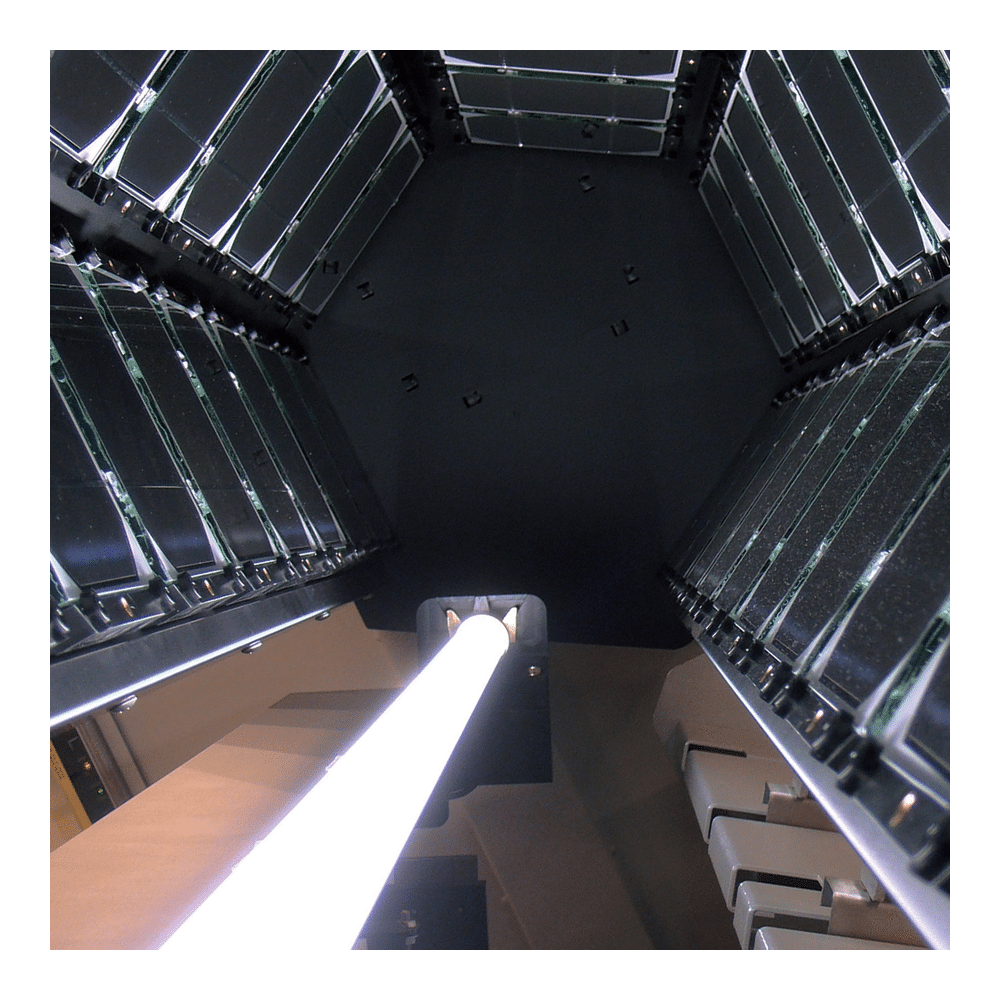

Designed for accurate, high speed automation at a low cost, Chroma adopted unique and innovative technologies to improve the way we test LED tubes. As photo detectors, mono-crystalline silicon solar cells are distributed around the LED tubes. Photoelectric conversion is applied and the test system significantly lowers cost, reduces the size of the measurement equipment and greatly increases test speed. Bottom line: These systems can complete a full photoelectric test of one LED tube every six seconds.
Optional modules can be added to boost testing and production of LED bulbs. Modules include: Pre-Burn to enable steady state testing, Center Beam Test for directive testing, and laser printing for label and logo.
Key Features
- Over 10K pcs throughput per day
- Supports a variety of LED tube measurements
- Supports JEL801 Light Intensity Distribution Measurement
- Supports Flicker Measurement
Model Options
| Model | Description |
| 5104 | LED Tube High Speed In-line Test System |
More Features
High power density:
18kW in 3U
High Speed Transient
Response <1.5ms
Solar Array Simulation
Function (Optional)
Intuitive and User-Friendly Touch Control Screen
Media
High Speed LED Tube Test System Overview
- Up to 12,000 pieces per day throughput
- Supports a variety of LED tubes
- Supports JEL801 spatial distribution test
- Supports flicker measurement
