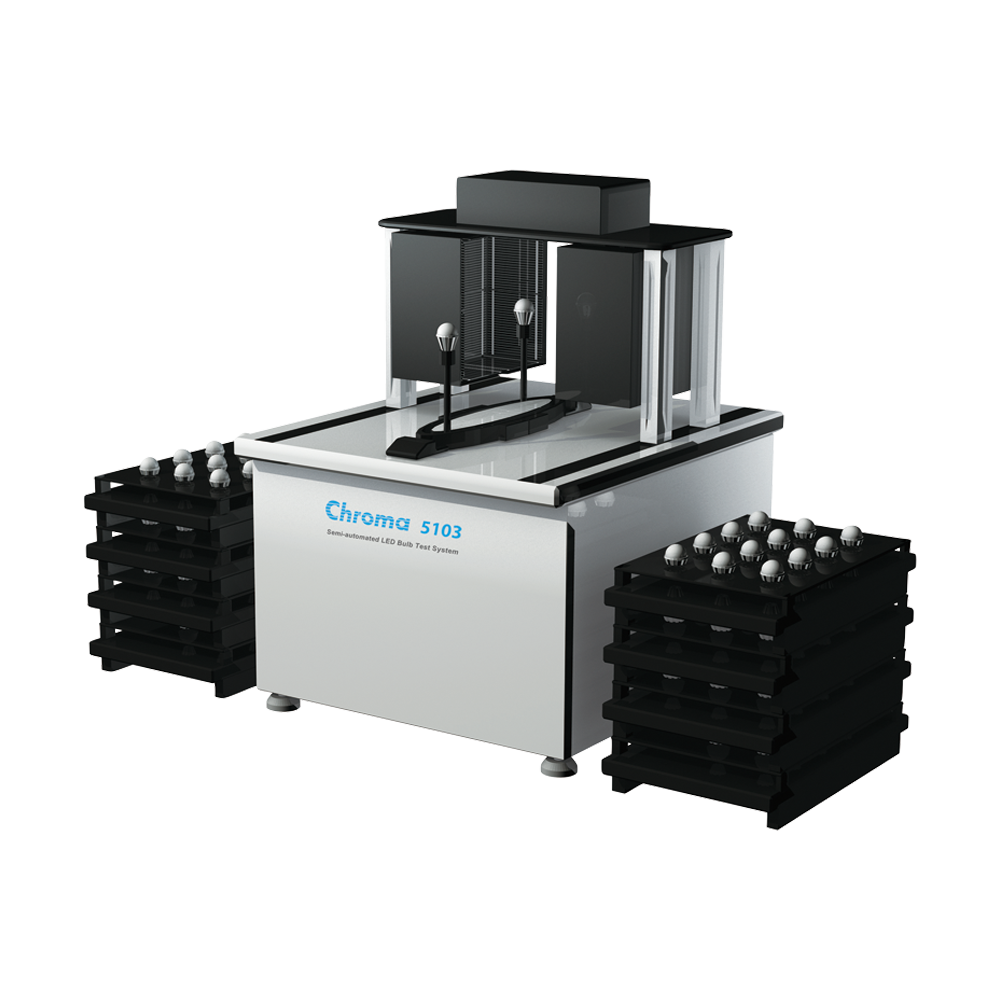

Semi-Automated LED Bulb Test System
Chroma 5103
Increases test speed performance at one LED bulb per four seconds including the time for photoelectric test
Chroma’s 5103 is an accurate, semi-automated LED Bulb Test System. Designed to increase testing speed at a low cost, Chroma adopted unique and innovative technologies to improve the way we test LED bulbs. As photo detectors, mono-crystalline silicon solar cells are distributed around the LED bulbs. Photoelectric conversion is applied and the test system significantly lowers cost, reduces the size of the measurement equipment and greatly increases test speed. The loading and unload of each LED bulb can be completed in three seconds. Chroma’s 5103 increases test speed performance at one LED bulb per four seconds including the time for photoelectric test.
Optimized Test Items
- Optical Power Characteristics: Lm, lm/w, LED operating frequency (Flicker)
- Color Characteristics: CIExy, Duv, CIEu’v’, CCT, CRI
- Power Characteristics: AC mode – Power factor (PF), Irms, Vrms, THD; DC mode – Forward voltage
- Spatial Distribution
- Flicker
Key Features
- Engineering Lab, Sample Testing in Production Applications
- LED Bulb Tester
- Higher Throughput than I.S.
- Omni-Directional LED Bulb Light Spatial Distribution Measurement
- Supports Flicker Measurement
Model Options
| Model | 5103 | |
| Applicable Tester | 58158-SC LED lighting test system | |
| Optical Measurement Capability | Lumens (lm), CIE(x,y), CIE(u',v'), CCT, CRI, R9, Duv | |
| Electrical Measurement Capability | Frequency, Real power P, power factor PF, THD, Vf | |
| Optical Measurement | Lumen measurement Repeatability | ±2% |
| CIExy Repeatability | ±0.001 (Halogen lamp) | |
| CCT Repeatability | ±30K @ 3000K | |
| CRI Repeatability | ±0.1 | |
| Suitable LED Lamps | Applicable Lamp | Directional lamp, Non-directional lamp and Omni-directional lamp |
| Applicable Base | Medium Screw (E27) | |
| Change Kit | E27 to GU10, E27 to E12/14 | |
| Handler Index Time | 3 sec/per-lamp (excluding lamp test time) | |
| System Facility Requirement | Power Requirement | AC θ220V, Max 50A |
| Air Requriement | Air pressure 6 kg/cm2 | |
More Features
Lorem Ipsum
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nam eget velit est. Nulla facilisi.
Lorem Ipsum
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nam eget velit est. Nulla facilisi.
Lorem Ipsum
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nam eget velit est. Nulla facilisi.
Lorem Ipsum
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nam eget velit est. Nulla facilisi.
Media
High Speed LED Lamps Test System
- Up to 18,000 pieces per day throughput
- Supports variety of LED lamps
- Supports DOE omnidirectional spacial distribution test
- Supports flicker measurement
