AI GPU and FPGA Load Simulator

Pactiv-R + Orac

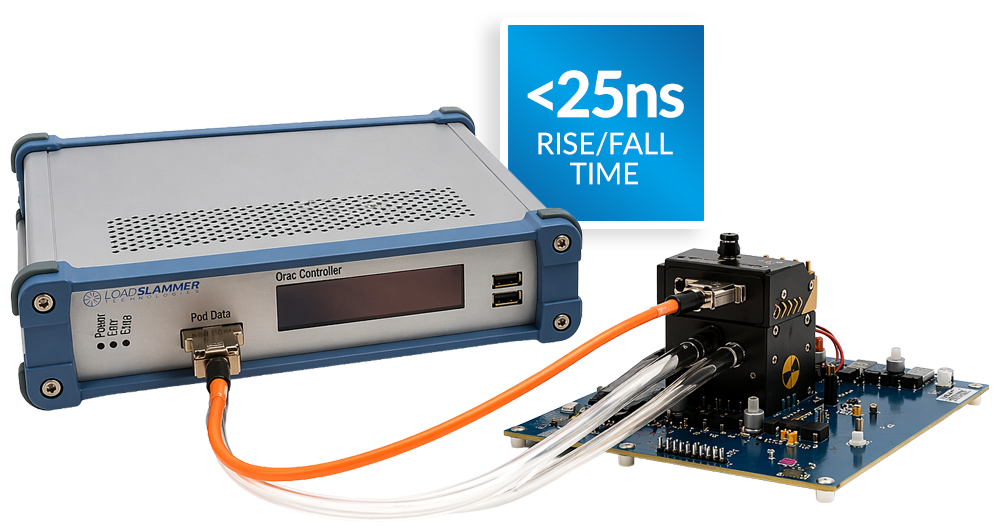

The PactivR Orac is a unified, high-performance AI GPU and FPGA Load Simulator that combines Pactiv transient/DC load hardware with the Orac AI-enhanced controller to help engineers perform GPU load simulation, FPGA load testing, and power delivery network (PDN) testing faster and more accurately. Designed for AI servers, accelerators, and advanced computing hardware, it enables chip and board designers to validate and characterize PDNs with greater ease than conventional test approaches.

<25 ns

RISE / FALL TIME

1.5 kW / 1800 A

PEAK TEST POWER

200x

FASTER VALIDATION

30+20

LOADCELLS & RAILS

High-Performance AI GPU and FPGA Load Simulator

The PactivR Orac is a unified, high-performance AI GPU and FPGA Load Simulator designed to help chip designers, board designers, and power integrity engineers validate and characterize power delivery networks (PDNs) faster and more efficiently. The platform combines Pactiv transient and DC load hardware with the Orac AI-enhanced controller, giving engineering teams a more automated way to test real-world silicon load behavior compared to conventional PDN validation methods.

With up to 1.5 kW of test power, 900 A continuous DC load capability, 1800 A instantaneous current, and sub-50 ns transient edges, PactivR Orac recreates the fast load dynamics found in advanced processors, ASICs, FPGAs, GPUs, and AI accelerators. Its architecture includes 30 programmable LoadCells across 20 differential sense channels, allowing teams to evaluate complex power delivery behavior with greater speed, accuracy, and repeatability.

By automating demanding transient load testing and PDN characterization, PactivR Orac helps reduce manual setup time, accelerate validation by approximately 200× compared to passive or conventional active approaches, and shorten the path to reliable, high-performance power delivery designs.

About ProGrAnalog LoadSlammer

Transient Load Testing for Power Delivery Networks

ProGrAnalog, the company behind LoadSlammer™, develops advanced transient load testing solutions for engineers designing and validating complex power delivery networks. LoadSlammer helps accelerate product development by giving design, validation, and power integrity teams a practical way to test real-world load conditions across CPUs, GPUs, FPGAs, ASICs, AI accelerators, and other high-performance electronic systems.

Built with automation in mind, ProGrAnalog solutions simplify the demanding process of validating power supply performance throughout each stage of product development. By improving test repeatability, reducing manual setup, and helping engineers identify power delivery issues earlier, LoadSlammer can help reduce design risk, shorten development cycles, and lower the overall cost of power supply testing.

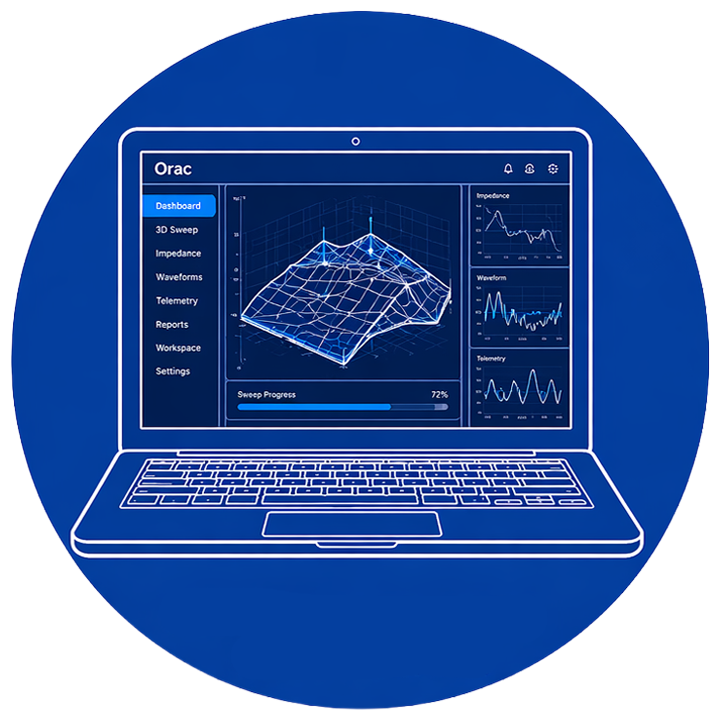

Platform Architecture

Features and Capabilities

3D SWEEP

Multi-axis sweeps across frequency, load, and output voltage — mapping full PDN behaviour in one automated pass.

LARGE-SIGNAL IMPEDANCE

PDN impedance under realistic drive conditions, exposing non-linearities invisible to conventional small-signal VNA techniques.

ARBITRARY WAVEFORM GEN

Custom current profiles replicating workloads, DVFS events, or burst patterns at nanosecond timing resolution.

AI VR OPTIMISATION

TeraDeep-backed AI evaluates regulator compensation across the full design space, minimizing droop and overshoot automatically.

AVS / PMBUS TELEMETRY

Native closed-loop voltage scaling and real-time VR telemetry monitoring through dedicated hardware host controller ports throughout every test sequence.

API & WORKSPACE MANAGEMENT

REST API and Python SDK for full automation. Shared workspaces ensure cross-team test consistency and reproducibility.

Technical Highlights

POWER & LOAD
Peak Test Power	1.5 kW
Efficiency Analysis	Integrated
DC Load Continuous	Up to 900 A
Peak / Instantaneous DC Load	Up to 1800 A

TRANSIENT PERFORMANCE
Rise / Fall Time	<25 ns
Slew Rate	72,000A/us
AWG Resolution	7.5ns
Transimpedance Analysis	Supported

SENSING & MEASUREMENT
Voltage Sense Range	20 x 4 Vsense
External Voltage Inputs	2 x 60 V
Sense Resolution	100 μV
GPIO Control & Monitoring	16 GPIO
