User Manuals for 62000H-S High Power Solar Array Simulating Programmable DC Power Supplies.
The latest programmable solar array simulator power supply 62000H-S Series released by Chroma provide simulation of Voc (open circuit voltage) up to 1800V and Isc (short circuit current) up to 30A. The 62000H-S provides an industry leading power density in a small 3U high package. The solar array simulator is highly stable and has a fast transient response design, which are both advantages to MPPT performance evaluation on PV inverter devices.

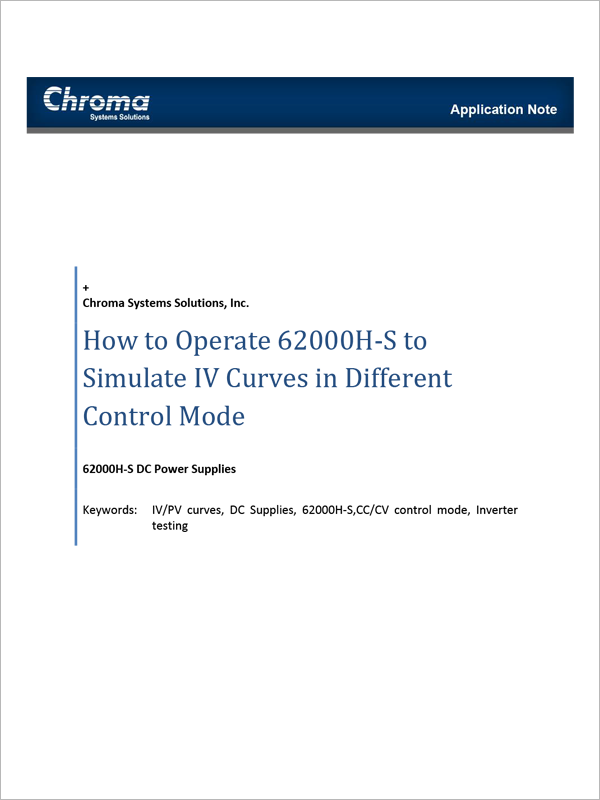

This application note describes how to select the appropriate I-V curve control mode to test the MPPT Efficiency of a PV inverter.
